CHESTER V15L ALPHA CNC MACHINING CENTRE

Advanced manufacturing CNC machines that can perform a variety of machining operations, with high performance and high rigidity these machines are suitable for mould making.

Please contact us for more info.

Description

• Cast iron is tempered for stress relief to ensure structural stability without deformation

• C3 class ballscrews ensures the highest accuracy and durability

• Pre-tension on all axis minimizes thermal distortion

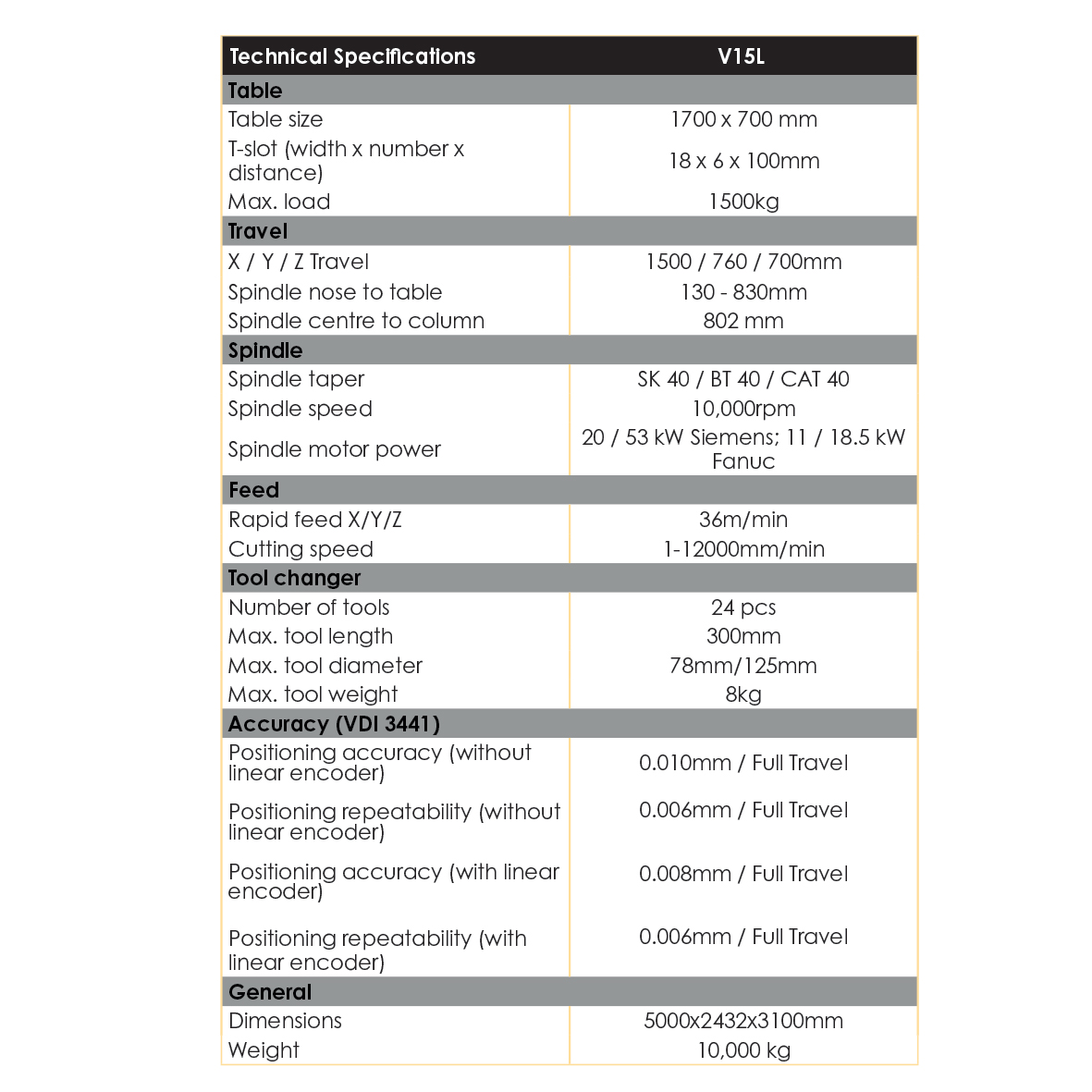

Technical Specifications                                           V15L
Table
Table size 1700 x 700 mm
T-slot (width x number x distance) 18 x 6 x 100mm
Max. load 1500kg
Travel
X / Y / Z Travel 1500 / 760 / 700mm
Spindle nose to table 130 – 830mm
Spindle centre to column 802 mm
Spindle
Spindle taper SK 40 / BT 40 / CAT 40
Spindle speed 10,000rpm
Spindle motor power 20 / 53 kW Siemens; 11 / 18.5 kW Fanuc
Feed
Rapid feed X/Y/Z 36m/min
Cutting speed 1-12000mm/min
Tool changer
Number of tools 24 pcs
Max. tool length 300mm
Max. tool diameter 78mm/125mm
Max. tool weight 8kg
Accuracy (VDI 3441)
Positioning accuracy (without linear encoder)

Positioning repeatability (without linear encoder)

Positioning accuracy (with linear encoder)

Positioning repeatability (with linear encoder)

0.010mm / Full Travel

0.006mm / Full Travel

0.008mm / Full Travel

0.006mm / Full Travel

General
Dimensions 5000x2432x3100mm
Weight 10,000 kg



STANDARD ACCESSORIES

• Fully enclosed splash guard

• Belt drive spindle 10000 rpm

• 24 pockets arm tool changer

• Chain type chip conveyor

• Air-conditioned electrical cabinet

• Rigid tapping

• Ethernet, CF card and USB interface

• Automatic lubrication system

• Coolant system

• LED working lamp

• End of program light

• Electronic handwheel (MPG)

• Tool box

• Leveling bolts and blocks

• Coolant gun

• Air gun

• Air blast during cutting

• User Manual



OPTIONAL ACCESSORIES

• Belt drive spindle 6000 rpm BT50

 Belt drive spindle 8000rpm BT50

 Direct drive spindle 12000rpm BT40

 Direct drive spindle 15000rpm BT40

 Spindle cooling system

 CTS Coolant through spindle + ATS

 Oil skimmer

 Workpiece probe

• Tool probe

 4th axis

 4/5th axis
