K series vice

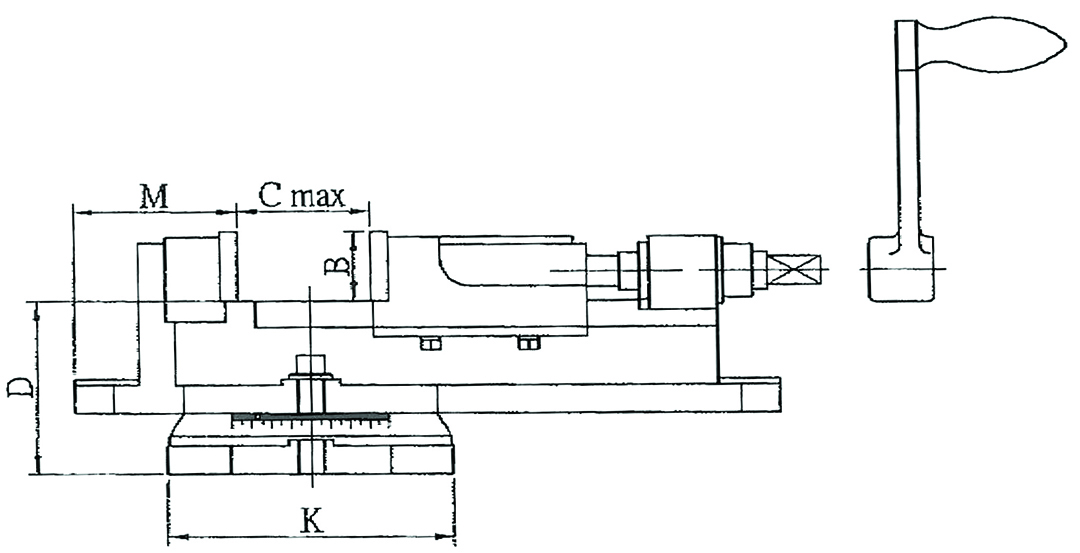

K Series Vice Diagram

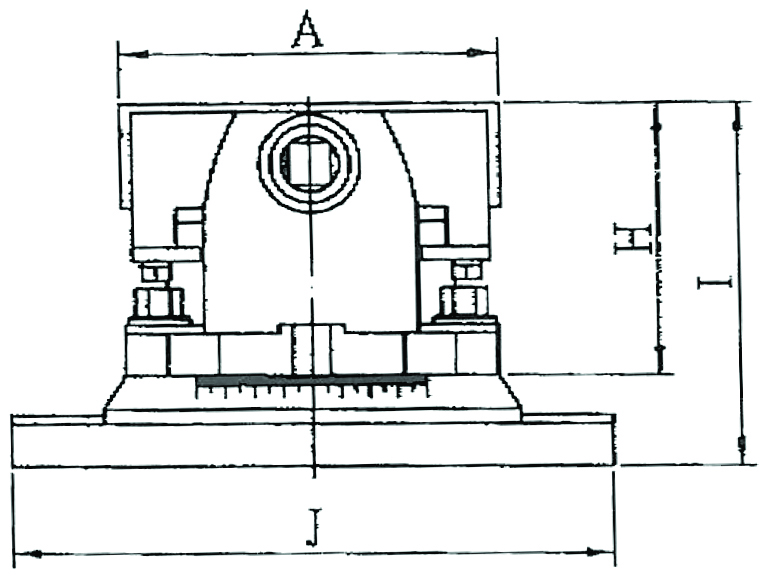

K Series Vice Diagram

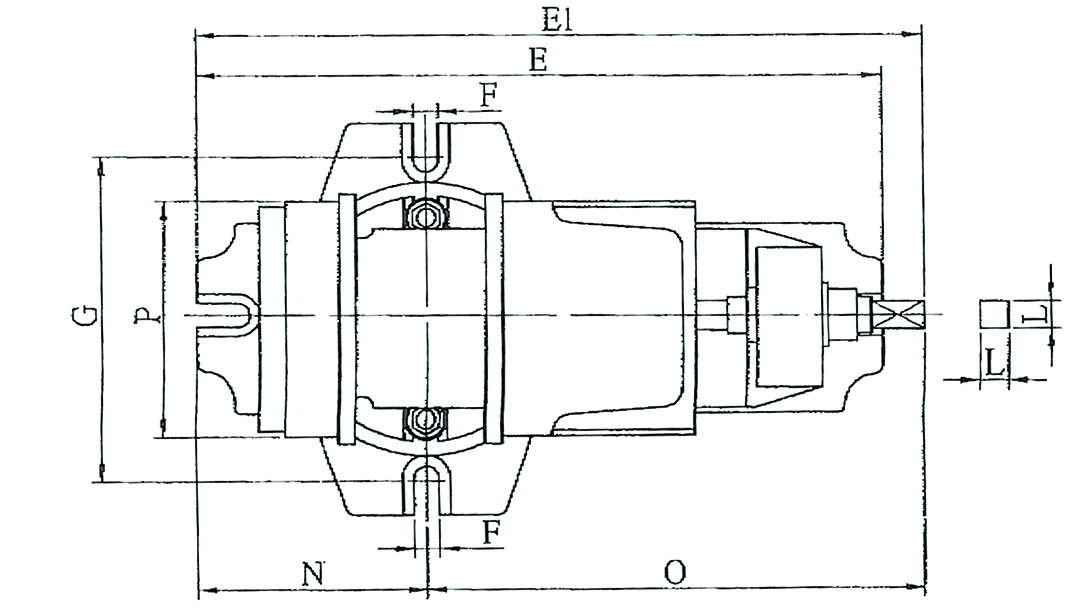

K Series Vice Diagram

K Series Vices

Price range: £115.24 through £552.42

Precision milling vices.

k series vice

Clear

SKU: N/A Categories: Tooling Shop, Vices, Work Holding Tags: BASE, K SERIES VICES, SWIVEL, TILTING, TILTING VICE WITH SWIVEL BASE, VICE

Description

Quality work holding vices, ideal for machining.

Stock Code	Model	A	B	C Max	D	E	E1	F
HOM-HKV-100	K100	104	36	62	76	293	310	13
HOM-HKV-125	K125	130	37	80	92	362	384	13
HOM-HKV-150	K150	152	43	112	105	442	473	15
HOM-HKV-200	K200	204	63	146	127	579	609	18

Stock Code	Model	G	H	I	J	K	L	M	N	O		Max. ClampForce	Net- Weight
HOM-HKV-100	K100	145	83	112	176	122	15	65	95	215	96	900	9kg
HOM-HKV-125	K125	172	97	129	209	147	15	84	119	265	124	900	14kg
HOM-HKV-150	K150	209	108	148	260	181	16.5	90	136	337	144	1000	25kg
HOM-HKV-200	K200	312	148	190	350	234	21	122	174	435	192	1400	55kg

Additional information

Weight	25 kg
k series vice	K100, K125, K150, K200
