Description

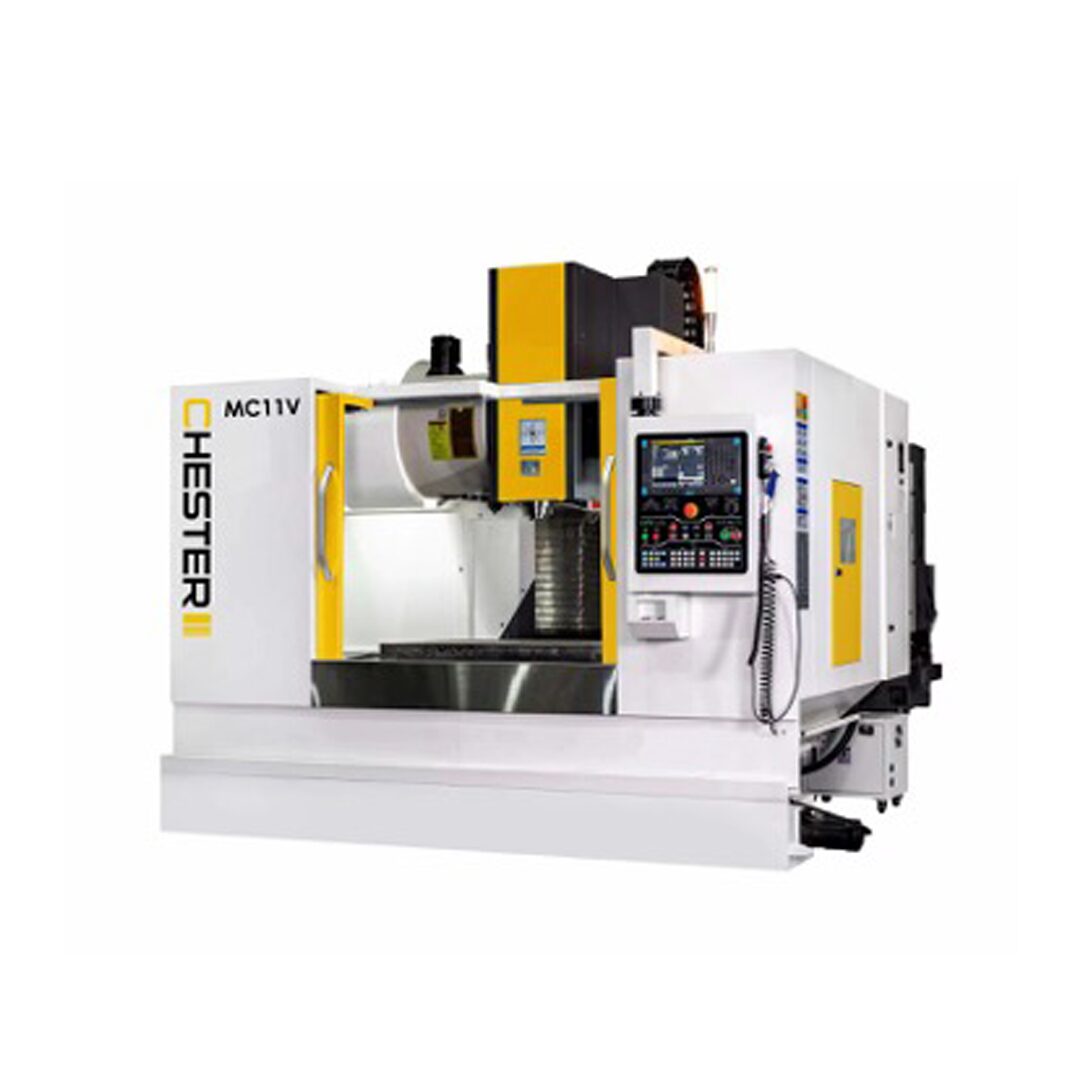

| Model | MC11V |
| Working Range | |
| X Axis Travel | 1100mm |
| Y Axis Travel | 600mm |
| Z Axis Travel | 650mm |
| Distance from spindle nose to table surface | 120-770m |
| Table size | |
| Table Length (X) | 1300mm |
| Table Width (Y) | 600mm |
| T Slot (Width x Distance x Number) | 18/100/5 |
| Max Table Load | 1000kg |
| Spindle | |
| Spindle speed | 40-10000rpm |
| Spindle main power | 11/18.5kW |
| Spindle taper | BT40 |
| Spindle output torque (Max.) | 52.5/118Nm |
| Feeding system | |
| X Axis rapid feed | 36000mm/min |
| Y Axis rapid feed | 36000mm/min |
| Z Axis rapid feed | 30000mm/min |
| Cutting feed speed | 1-10000mm/min |
| X Axis screw (DiaxPitch) | 40x12mm |
| Y Axis screw (DiaxPitch) | 40x12mm |
| Z Axis screw (DiaxPitch) | 40x12mm |
| Tool Magazine System | Arm Type |
| Tool Numbers | 24 |
| Max Tool Dia (full/empty) | 80/125mm |
| Max Tool Length | 300mm |
| Max Tool Weight | 8kg |
| Tool Changing Time | 1.55/5s |
| Accuracy | |
| Positioning Accuracy | ±0.005/300mm (JIS) |
| Repeat Positioning Accuracy | ±0.003mm (JIS) |
| Airpower | 0.5-0.7Mpa |
| Machine size | 3825 x 2400 x 2680mm |
| Machine weight | 6400kg |
Standard Accessories
- Siemens 828D control system
- BT40-10000rpm belt spindle
- Spindle oil cooler
- X,Y,Z Axes 45mm Roller linear guide ways
- PMI or THK ball screws
- 24cs Arm type tool magazine
- Spindle blowing chip removal system
- Spindle front seal
- Auto centralized lubrication system
- Water cooling, air cooling
- Working lamp
- Alarm light
- Safety door lock
- Screw type chip removal system with flushing
- Automatic power off M30
- Coolant cleaning gun
- Toolbox
- Operation manual
Optional Accessories
- 4th Axis rotary table 250mm with 3 jaw manual type chuck and tail stock
- 4/5 Axis 210mm pneumatic rotary table
- 12000rpm direct drive spindle with oil cooler
- Tool setter TS27R
- Work piece OMP60
- 2MPA CTS for belt spindle
- Air conditioner for electrical cabinet
- Oil skimmer
- Chain type chip conveyor
