Description
Features:
- Robust Steel Frame Construction
- Moveable Hydraulic Cylinder
- User Friendly Maintenance
| Model | WP50H | WP80H | WP100H | WP150H | WP200H | WP300H |
| Maximum Force | 51T | 82T | 102T | 153T | 204T | 306T |
| Hydraulic Pressure | 30Mpa | 30Mpa | 30Mpa | 30Mpa | 30Mpa | 28.5Mpa |
| Cylinder Stroke | 250mm | 250mm | 300mm | 300mm | 300mm | 300mm |
| Ram Speed (Forward/Return) | 4/5mm/s | 4.6/6.1mm/s | 7.6/10.5mm/s | 4.9/6.7mm/s | 3.9/5.8mm/s | 5.9/8.5mm/s |
| Worktable Travel (Size/Inner Hole Diameter) | 550x350mm/Φ120mm | 650x415mm/Φ120mm | 650×440 mm/Φ120mm | 700x530mm/Φ120mm | 750x550mm/Φ150mm | 800x685mm/Φ150mm |
| Worktable Travel (Increments x Distance) | 4 x 150mm | 3 x 250mm | 5 x 150mm | 5 x 150mm | 5 x 150mm | 2 x 300mm |
| Motor Power | 2.2kW (3.0HP) | 4kW (5.4HP) | 7.5kw (10.1HP) | 7.5kw (10.1HP) | 7.5kw (10.1HP) | 22kw (29.5HP) |

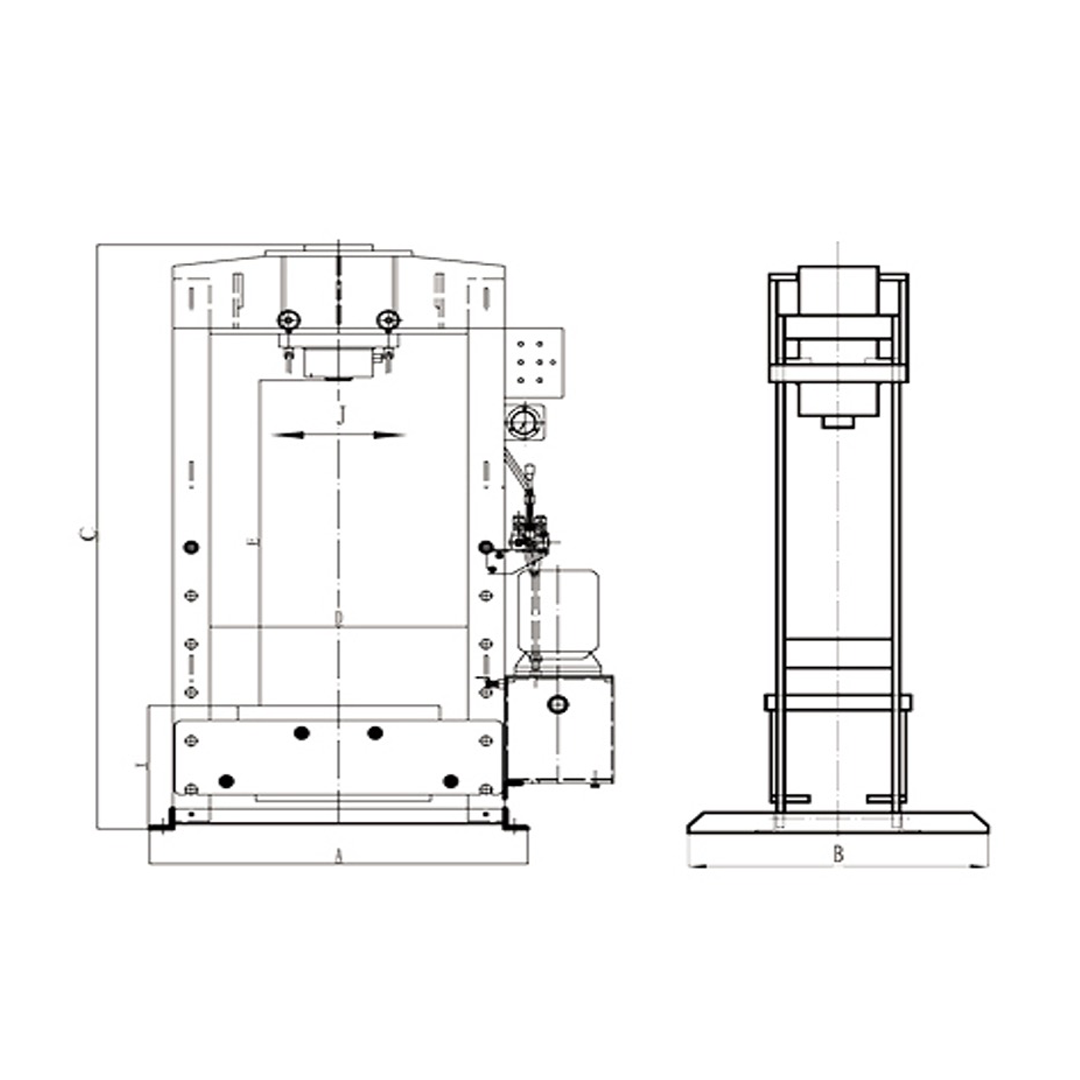

| A | 1026mm | 1490mm | 1480mm | 1476mm | 1686mm | 1626mm |
| B | 700mm | 950mm | 790mm | 870mm | 900mm | 1020mm |
| C | 1825mm | 2067mm | 2042mm | 2215mm | 2310mm | 2345mm |
| D | 700mm | 1050mm | 1100mm | 1100mm | 1300mm | 1300mm |
| E | 1010mm | 962mm | 808mm | 890mm | 864mm | 764mm |
| I | 325mm | 469mm | 597mm | 599mm | 669mm | 748mm |
| J | 320mm | 580mm | 640mm | 580mm | 730mm | 610mm |
| Weight | 860kg | 1205kg | 1430kg | 2220kg | 2830kg | 3950kg |
Standard Accessories:
- Safety Fence
- V Block
- Dedicated Lifting Sling
