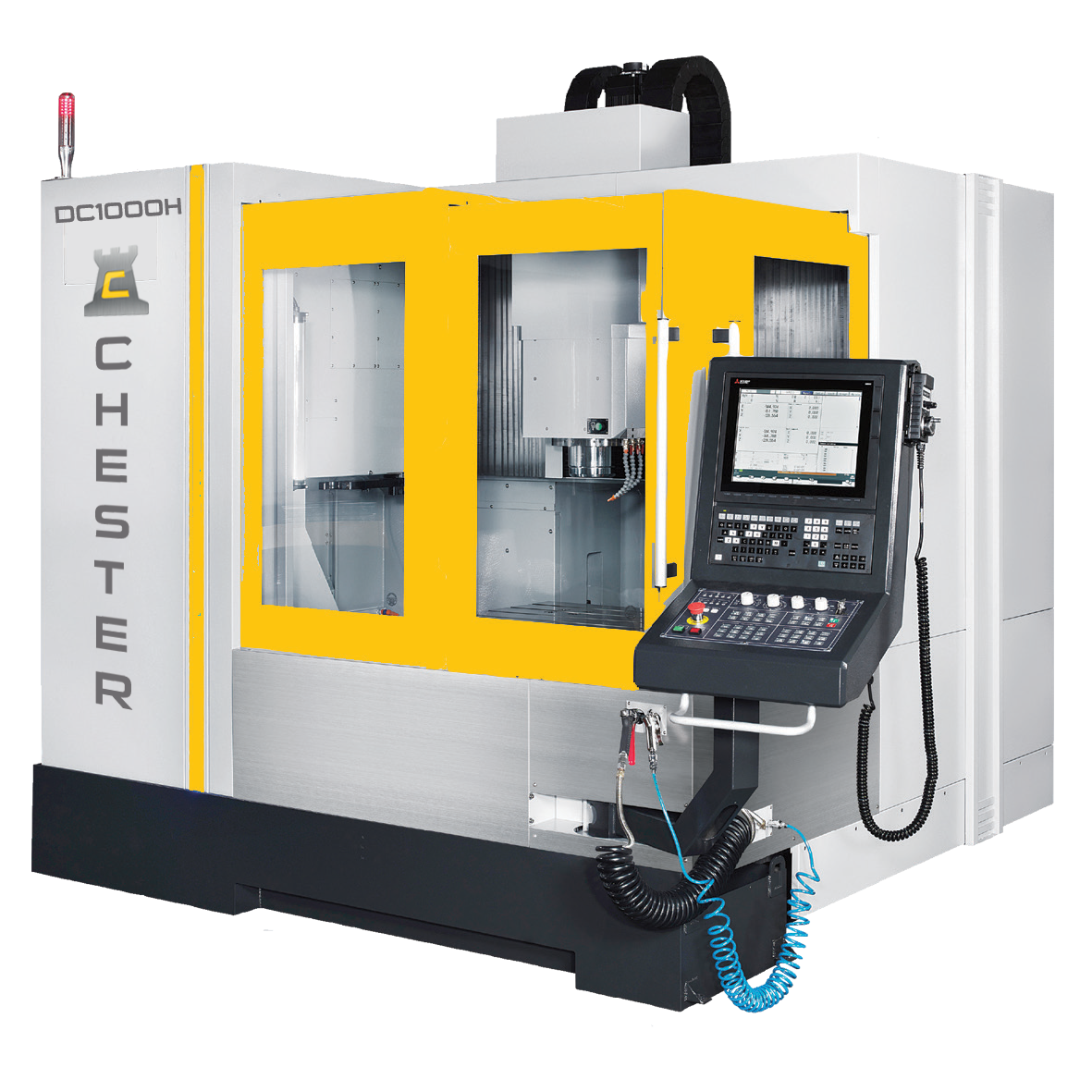

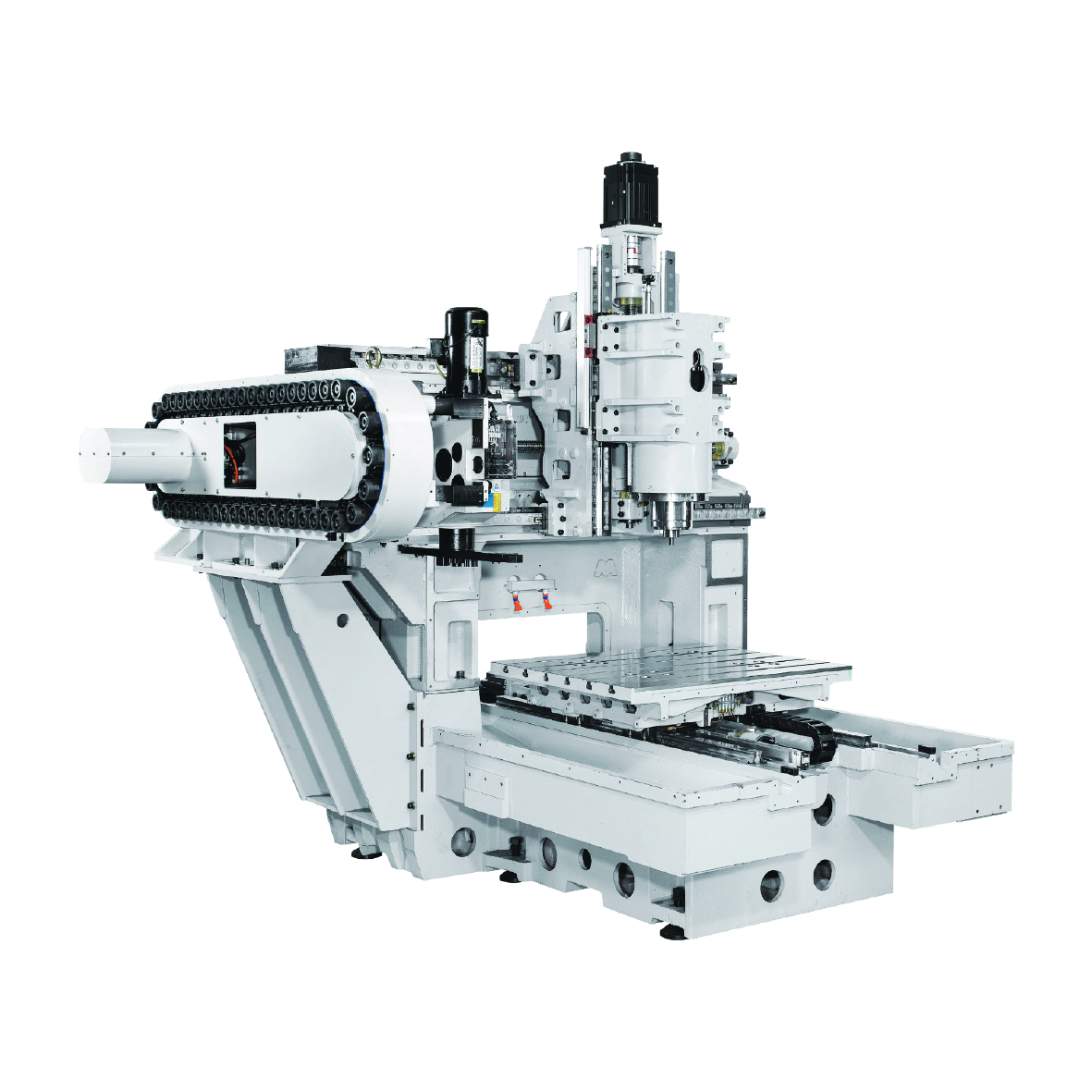

CHESTER DC1000H LARGE CAPACITY GANTRY MILLING MACHINE

The DC1000H features Heavy Milling capability, comprising a high power and high torque spindle.

Please contact us for more info.

Description

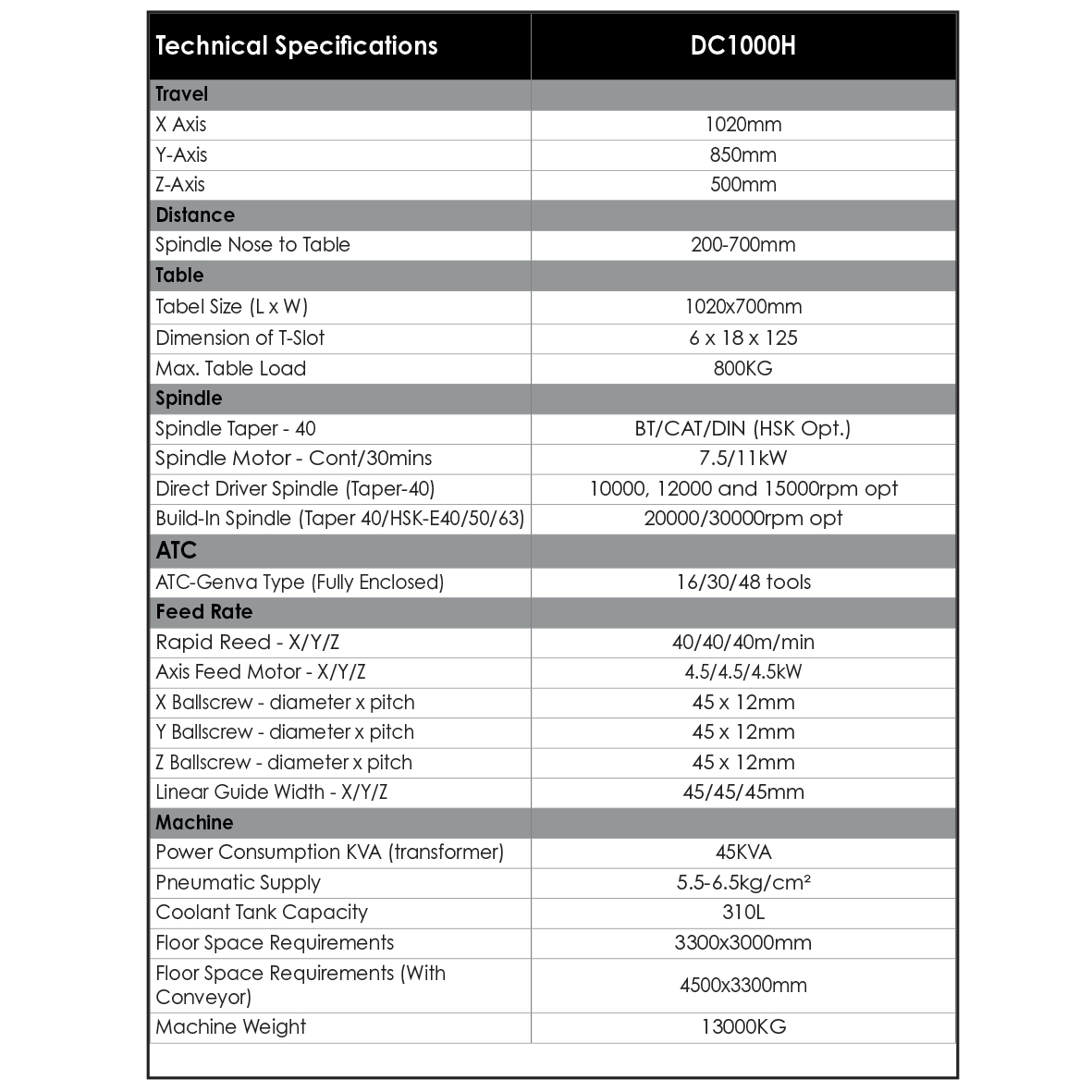

Technical Specifications DC1000H
Travel
X Axis 1020mm
Y-Axis 850mm
Z-Axis 500mm
Distance
Spindle Nose to Table 200-700mm
Table
Tabel Size (L x W) 1020x700mm
Dimension of T-Slot 6 x 18 x 125
Max. Table Load 800KG
Spindle
Spindle Taper – 40 BT/CAT/DIN (HSK Opt.)
Spindle Motor – Cont/30mins 7.5/11kW
Direct Driver Spindle (Taper-40) 10000, 12000 and 15000rpm opt
Build-In Spindle (Taper 40/HSK-E40/50/63) 20000/30000rpm opt
ATC
ATC-Genva Type (Fully Enclosed) 16/30/48 tools
Feed Rate
Rapid Reed – X/Y/Z 40/40/40m/min
Axis Feed Motor – X/Y/Z 4.5/4.5/4.5kW
X Ballscrew – diameter x pitch 45 x 12mm
Y Ballscrew – diameter x pitch 45 x 12mm
Z Ballscrew – diameter x pitch 45 x 12mm
Linear Guide Width – X/Y/Z 45/45/45mm
Machine
Power Consumption KVA (transformer) 45KVA
Pneumatic Supply 5.5-6.5kg/cm²
Coolant Tank Capacity 310L
Floor Space Requirements 3300x3000mm
Floor Space Requirements (With Conveyor) 4500x3300mm
Machine Weight 13000KG



STANDARD ACCESSORIES

• Tool Kit

• LED Work Light

• 3-Step Warning Light

• Levelling Blocks and Bolts

• Fully Enclosed Splash Guard

• Rigid Tapping

• Spindle Coolant Nozzle System

• Spindle Air Blast

• Central Lubrication System

• Auto Interrupt and Power Off System

• Portable Handwheel

• CNC Manual

• Operation Manual and Maintenance Manual

• Air Gun

• Coolant Gun

• Guideway Cover (X, Y, Z)

• Heat Exchanger for Electrical Cabinet

• Safety Door

• Spindle Coolant System

• Cutting Air Blast

• Cutting Coolant System

• Spindle Oil Chiller



OPTIONAL ACCESSORIES

• Oil Skimmer

• CTS 20-70Bar

• Linear Scale

• Oil Mist Coolant System

• Oil Mist Collector

• Belt Type Chip Conveyor

• Screw Type Chip Conveyor

• Workpiece Measurement System

• Auto Tool Touch Probe

• Auto Lool Laser Probe

• AC Cooler for Electrical Cabinet

• 4th Axis Rotary Table

• 5th Axis Tilting Rotary Table

• Heavy Duty Coolant Pump

• Paper Filter

• Machine Height Increased by 150mm
