Description

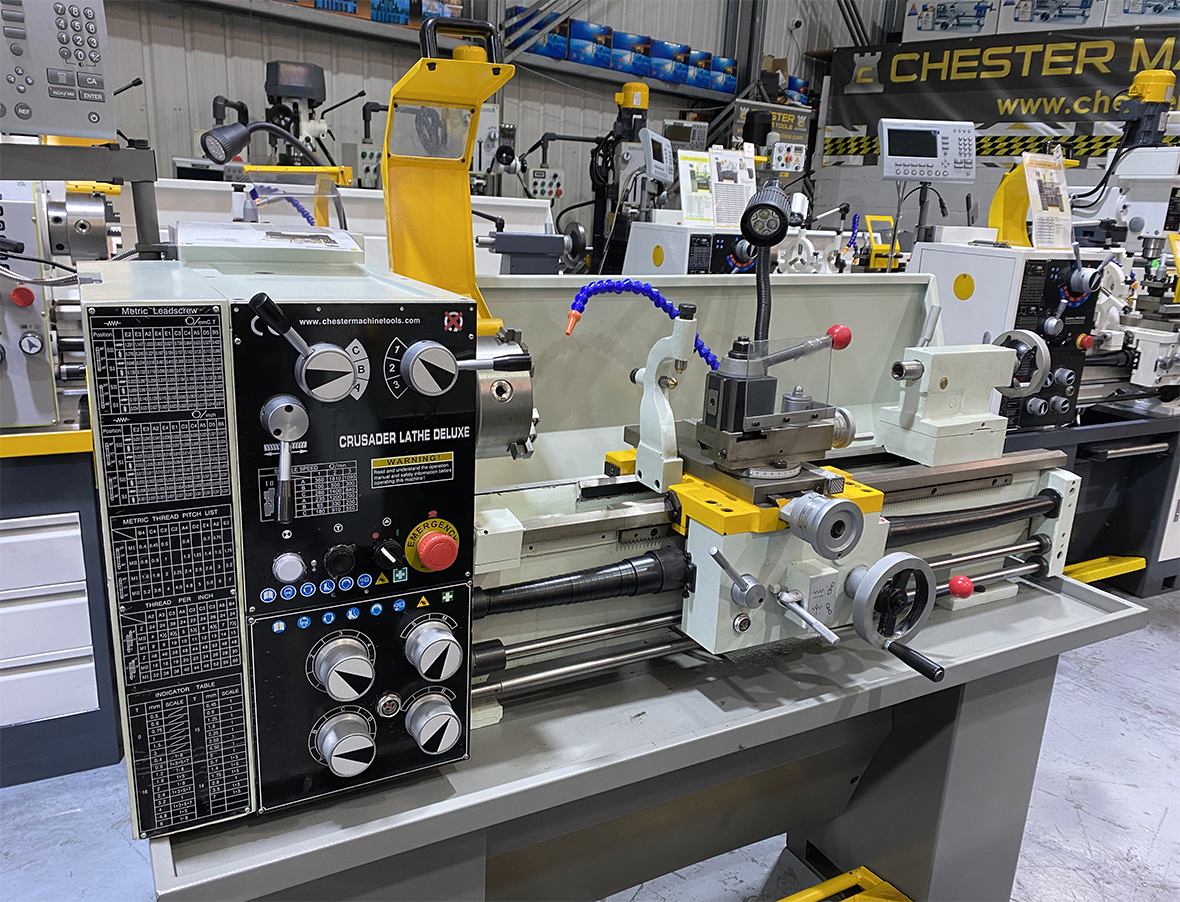

An Ex Display Crusader Deluxe Lathe, 415v. £3499 inc Vat, contact us for delivery details/pricing.
| Centre Height | 150mm |
| Swing over Bed | 300mm |
| Distance Between Centres | 1000mm |
| Swing over Cross Slide | 178mm |
| Cross Slide Travel | 160mm |
| Top Slide Travel | 85mm |
| Bed | |
| Width | 181mm |
| Max. Weight of Work Piece between Centres | 90kg |
| Headstock | |
| Spindle Nose | D1-4 |
| Spindle Bore | 38mm |
| Spindle Taper | MT5 |
| Number of Spindle Speeds | 9 |
| Range of Spindle Speeds | 65-1500rpm |
| Tailstock | |
| Quill Diameter | 32mm |
| Quill Travel | 92mm |
| Quill Internal Taper | MT3 |
| Feeds Range and Gearbox | |
| Longitudinal Feeds | 0.052-1.392mm(32 steps) |
| Cross Feeds | 0.014-0.38mm(32 steps) |
| Metric Threads | 0.4-7mm (26 steps) |
| Imperial Threads | 4-56tpi (34 steps) |
| Pitch of Leadscrew | 3mm |
| Motors | |
| Main Motor | 1.1kW (1.5hp) |
| Coolant Pump Motor | 0.04kW (0.05hp) |
| Weight And Dimensions | |
| Machine Dimensions | 1720 x 760 x 1600mm |
| Net Weight | 460kg |
Comes with 12-months parts-only warranty
