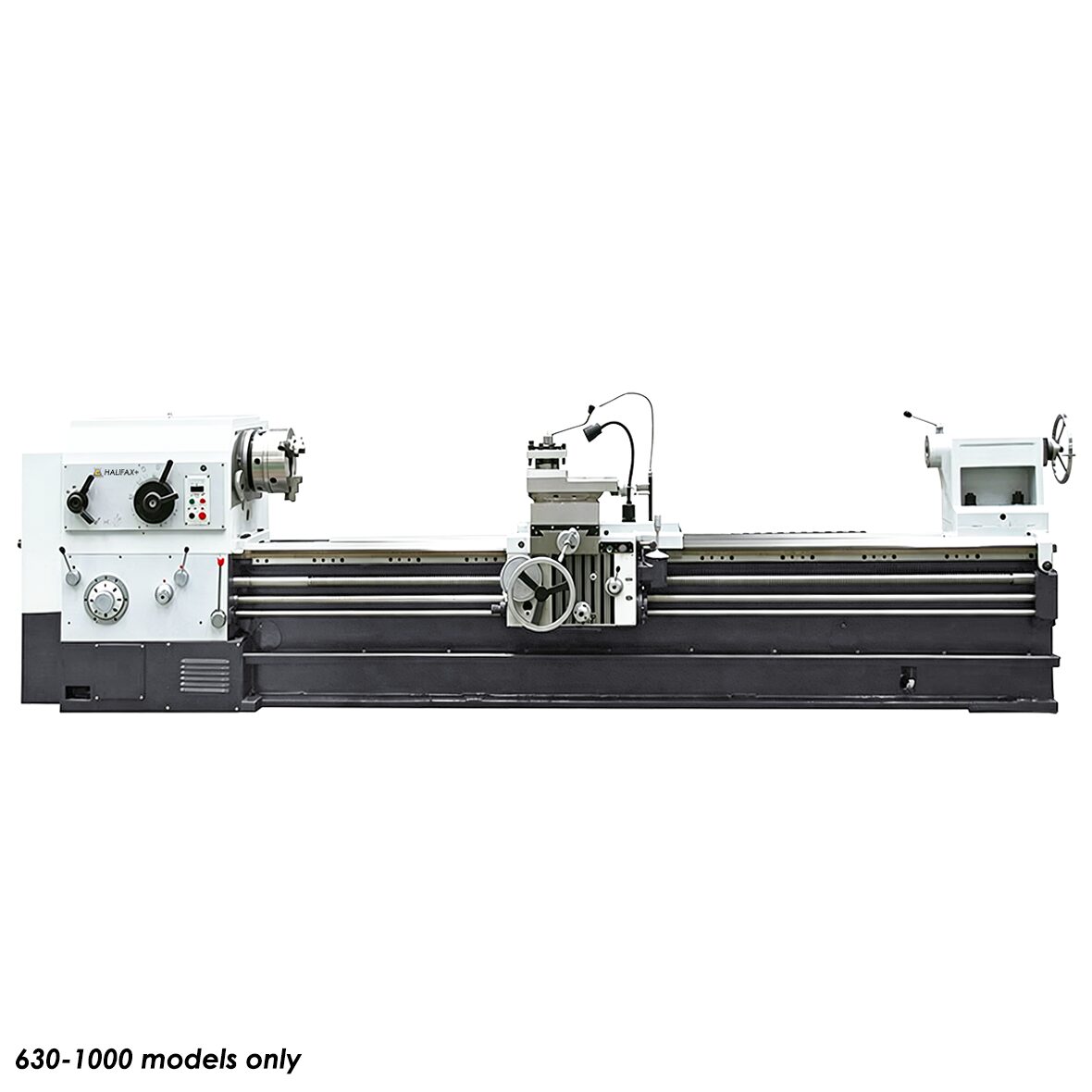

Halifax 630 Lathe

CHESTER HALIFAX+ SERIES LATHES

The Halifax+ Series are heavy construction, high precision machines. With hardened and ground guideways, and motorised saddle.

Please contact us for more info.

Categories: , , , , Tags: , , ,

Description

Precision metal lathes with large spindle bore and 2 Axis DRO (up to 3m dbc only).

Model  HALIFAX+ 630  HALIFAX+ 800  HALIFAX+ 1000
Centre Height  315mm  400mm  500mm
Swing over Bed  630mm  800mm  1000mm
Distance Between Centres  1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000/11000/12000mm
Swing over Cross Slide  350mm  480mm  680mm
Swing in Gap  800mm  1000mm  1200mm
Gap Length in front of Face Plate  300mm  300mm  300mm
Cross Slide Travel  320mm  420mm  520mm
Top Slide Travel  200mm  200mm  200mm
Bed
Width  550mm  600mm  600mm
Max. Weight of Work Piece between centres  3t  4t  4t
Headstock
Spindle Nose  D-11  D-11  D-11
Spindle Bore  105mm (Opt. 130mm)  105mm (Opt. 130mm)  105mm (Opt. 130mm)
Spindle Taper  120mm (Opt. 140mm for 130mm Spindle Bore)  120mm, (Opt. 140mm for 130mm Spindle Bore)  120mm, (Opt. 140mm for 130mm Spindle Bore)
Number of Spindle Speeds  Forward 18 steps  Forward 18 steps  Forward 18 steps
Range of Spindle Speeds  7.5-1000rpm  6-800rpm  6-800rpm
Tool Section  30 x 30mm  32 x 32mm  32 x 32mm
Tailstock
Quill Diameter  100mm  120mm  120mm
Quill Travel  250mm  250mm  250mm
Quill Internal Taper  MT6  MT6  MT6
Feeds Range and Gearbox
Longitudinal Feeds  0.1-24.3mm/r  0.1-24.3mm/r  0.1-24.3mm/r
Cross Feeds  0.05-12.15mm/r  0.05-12.15mm/r  0.05-12.15mm/r
Metric Threads  1-240mm (50steps)  1-240mm (50steps)  1-240mm (50steps)
Imperial Threads  1-14tpi (26steps)  1-14tpi (26steps)  1-14tpi (26steps)
Module Threads  0.3-120mp (53steps)  0.3-120mp (53steps)  0.3-120mp (53steps)
Diametrical Threads  1-28dp (24steps)  1-28dp (24steps)  1-28dp (24steps)
Leadscrew Pitch  12mm  12mm  12mm
Rapid Feed: Longitudinal/Cross  4000mm/min,

2000mm/min

 4000mm/min,

2000mm/min

 4000mm/min,

2000mm/min
Motors
Main Motor  11kW (14.75hp)  15kW (20.1hp)  15kW (20.1hp)
Coolant Pump Motor  0.125kW (0.17hp)  0.125kW (0.17hp)  0.125kW (0.17hp)
Rapid Feed Motor  1.1kW (1.48hp)  1.1kW (1.48hp)  1.1kW (1.48hp)
Available Power Supply  3 Phase  3 Phase  3 Phase
Weight and Dimensions
Machine Dimensions (3m machine)  3300/3800/4300/5300/63 00/7300/8300/9300/1030 0/11300/12300/13300/14 300 x 1450 x 1540mm  3500/4000/4500/5500/65 00/7500/8500/9500/1050 0/11500/12500/13500/14 500 x 1550 x 1650mm  3500/4000/4500/5500/650 0/7500/8500/9500/10500/1 1500/12500/13500/14500 x 1750 x 1750mm
Net Weight (3m machine)  3500/3800/4200/4900/56 00/6300/7000/7700/8400 /9100/9800/10500/11200 kg  4700/5000/5400/6100/68 00/7500/8200/8900/9600 /10300/11000/11700/124 00kg  5000/5300/5700/6400/7100 /7800/8500/9200/9900/106 00/11300/12000/12700k
Model HALIFAX+ 1200 HALIFAX+ 1400 HALIFAX+ 1600
Centre Height 600mm 700mm 800mm
Swing over Bed 1200mm 1400mm 1600mm
Distance Between Centres 1500/2000/3000/4000/5000/6000/8000/10000/12000mm 2000/3000/4000/5000/6000/8000/10000/12000mm
Swing over Cross Slide 880mm 1000mm 1200mm
Swing in Gap 1400mm 1600mm 1800mm
Gap Length in front of Face Plate 250mm 250mm 250mm
Cross Slide Travel 500mm 600mm 800mm
Top Slide Travel 170mm 200mm 200mm
Bed
Width 600mm 600mm 600mm
Max. Weight of Work Piece in Chuck 600kg 600kg 600kg
Max. Weight of Work Piece between centres 3t 3t 3t
Headstock
Spindle Nose D-11 (Opt. D-15 for 130mm Spindle Bore) D-11 (Opt. D-15 for 130mm Spindle Bore) D-11 (Opt. D-15 for 130mm Spindle Bore)
Spindle Bore 105mm (Opt. 130mm) 105mm (Opt. 130mm) 105mm (Opt. 130mm)
Spindle Taper 120mm taper 1:20 (Opt. 140mm for 130mm Spindle Bore) 120mm taper 1:20, (Opt. 140mm for 130mm Spindle Bore) 120mm taper 1:20, (Opt. 140mm for 130mm Spindle Bore)
Number of Spindle Speeds Forward 18 steps,

Reverse 6 steps

 Forward 18 steps,

Reverse 6 steps

 Forward 18 steps,

Reverse 6 steps
Range of Spindle Speeds 5.5-730rpm 5.5-730rpm 5.5-730rpm
Tool Section 32 x 32mm 32 x 23mm 32 x 32mm
Tailstock
Quill Diameter 120mm 120mm 120mm
Quill Travel 240mm 240mm 240mm
Quill Internal Taper MT6 MT6 MT6
Feeds Range and Gearbox
Longitudinal Feeds 0.1-24.3mm/r 0.1-24.3mm/r 0.1-24.3mm/r
Cross Feeds 0.05-12.15mm/r 0.05-12.15mm/r 0.05-12.15mm/r
Metric Threads 1-240mm (52steps) 1-240mm (52steps) 1-240mm (52steps)
Imperial Threads 1-14tpi (26steps) 1-14tpi (26steps) 1-14tpi (26steps)
Module Threads 0.5-120mp (53steps) 0.5-120mp (53steps) 0.5-120mp (53steps)
Diametrical Threads 1-28dp (24steps) 1-28dp (24steps) 1-28dp (24steps)
Leadscrew Pitch 12mm 12mm 12mm
Rapid Feed: Longitudinal/Cross 4000mm/min,

2000mm/min

 4000mm/min,

2000mm/min

 4000mm/min,

2000mm/min
Motors
Main Motor 11kW (14.75hp) 11kW (14.75hp) 11kW (14.75hp)
Coolant Pump Motor 0.09kW 0.09kW 0.09kW
Rapid Feed Motor 1.1kW(1.48hp) 1.1kW(1.48hp) 1.1kW(1.48hp)
Available Power Supply 3 Phase 3 Phase 3 Phase
Weight and Dimensions
Machine Dimensions (3m machine) 5000 x 1700 x 1800mm 5000 x 2000 x 2100mm 5000 x 2000 x 2200mm
Net Weight (3m machine) 6200kg 6500kg 6600kg

• Rapid Feed
• Clutch
• Heavy Duty Construction
• Hardened and Ground Guideways

• 3 Jaw Chuck 325mm (630), 400mm (800 & 1000), 500mm (1200-1600)

• 4 Jaw Chuck 400mm (630/800), 500mm (1000), 630mm (1200-1600)

• Digital Read Out

• LED Machine Lamp

• Cast Iron Base

• Chuck Guard

• Toolpost Guard

• Leadscrew Guard

• Top Slide Feed (except 1400, 1600)

• Fixed Steady

• Travelling Steady

• Full Length Rear Splash Guard (6m and below)

• Splash Guard behind Carriage (7m and above)

• Coolant System

• Four Way Tool Post

• Reducing Sleeve

• Steel Centre

• Tool Box

• Operation Manual



OPTIONAL ACCESSORIES

• 130mm Bore (except 630)

• Larger 3 Jaw Chuck

• Larger 4 Jaw Chuck

• Fixed Steady (100-300mm) (630 only)

• Fixed Steady (200–400mm) (800 & 1000)

• Quick Change Tool post with Tool Holders

• Taper Turning attachment

• Live Centre

• Face Plate

• 15kW Main Motor for 630 model
