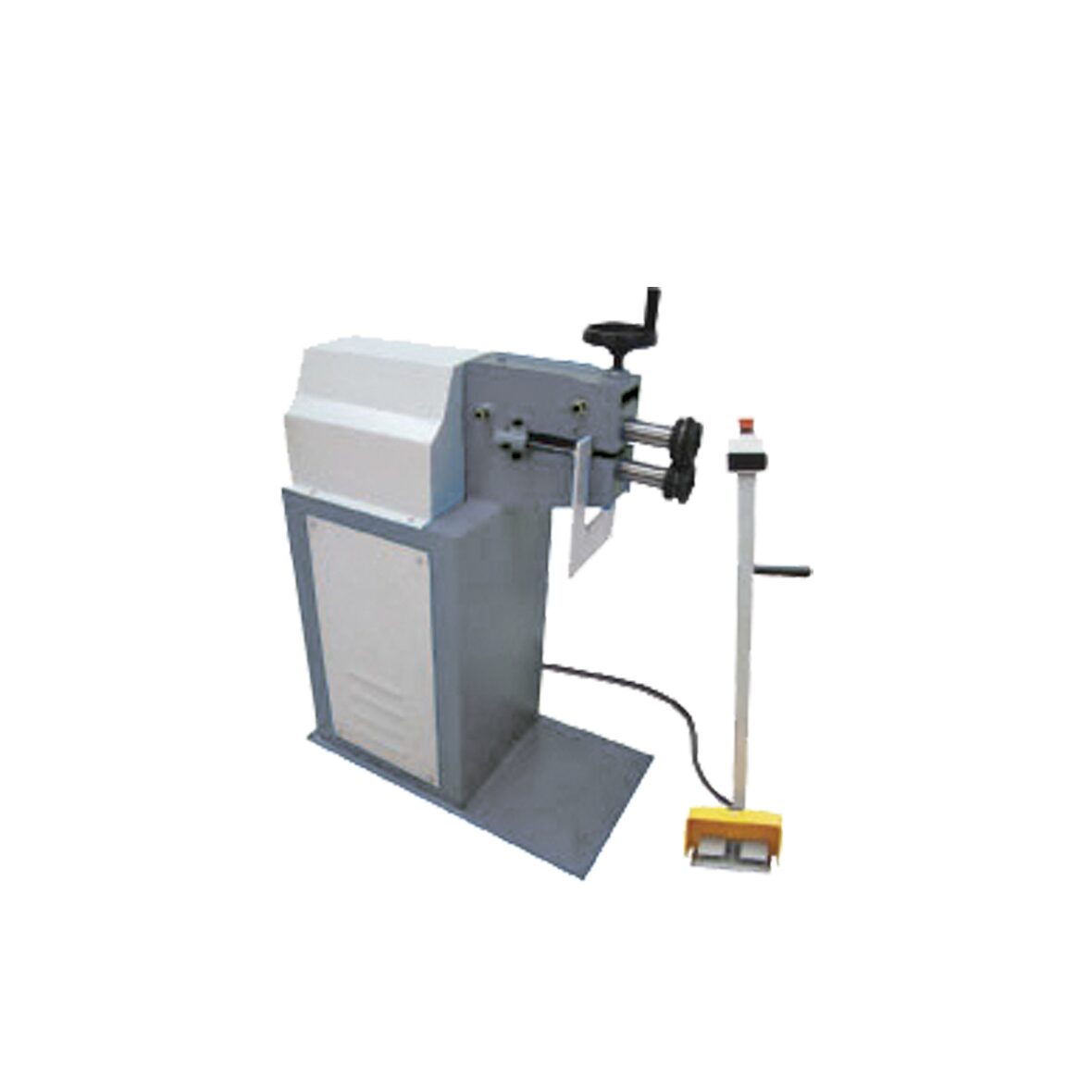

CHESTER MR18/MR24E/MR36E/MR42E BEAD BENDING MACHINES

• Round Ducts, Beadings,  Single and Offset Processing

• With 3 Sets Standard Rollers

• Designed to Handle 1mm Mild Steel,1.2mm Aluminium

• Heavy Duty All Fabricated Plate Steel Construction

Please contact us for more info.

Categories: , , Tags: , , , , ,

Description

• Adjustable Depth Of Bead

• Variable Speed Foot Control for Hands Free Operation

• Forward and Reverse Switch for Left or Right Side Operation

• Head Treated Gears for Longevity

• With One Set 1/2” Round Bead Steel Rollers (Standard)

• Other Rollers Available as Option

Model MR18 MR24E MR36E MR42E
Capacity 1.8mm/16 Ga 1.0mm/20Ga 1.0mm/20Ga 1.0mm/20Ga
Throat Depth 238mm/9-3/8″ 610mm/24″ 910mm/36″ 1067mm/42″
Machine Size 800x420x1075mm 1116x610x1212mm 1468x610x1360mm 1656x610x1430mm
Net Weight 140 kg 60 kg 74 kg 87 kg



Click the links below to download the specific documents.
MR-Series.pdf
