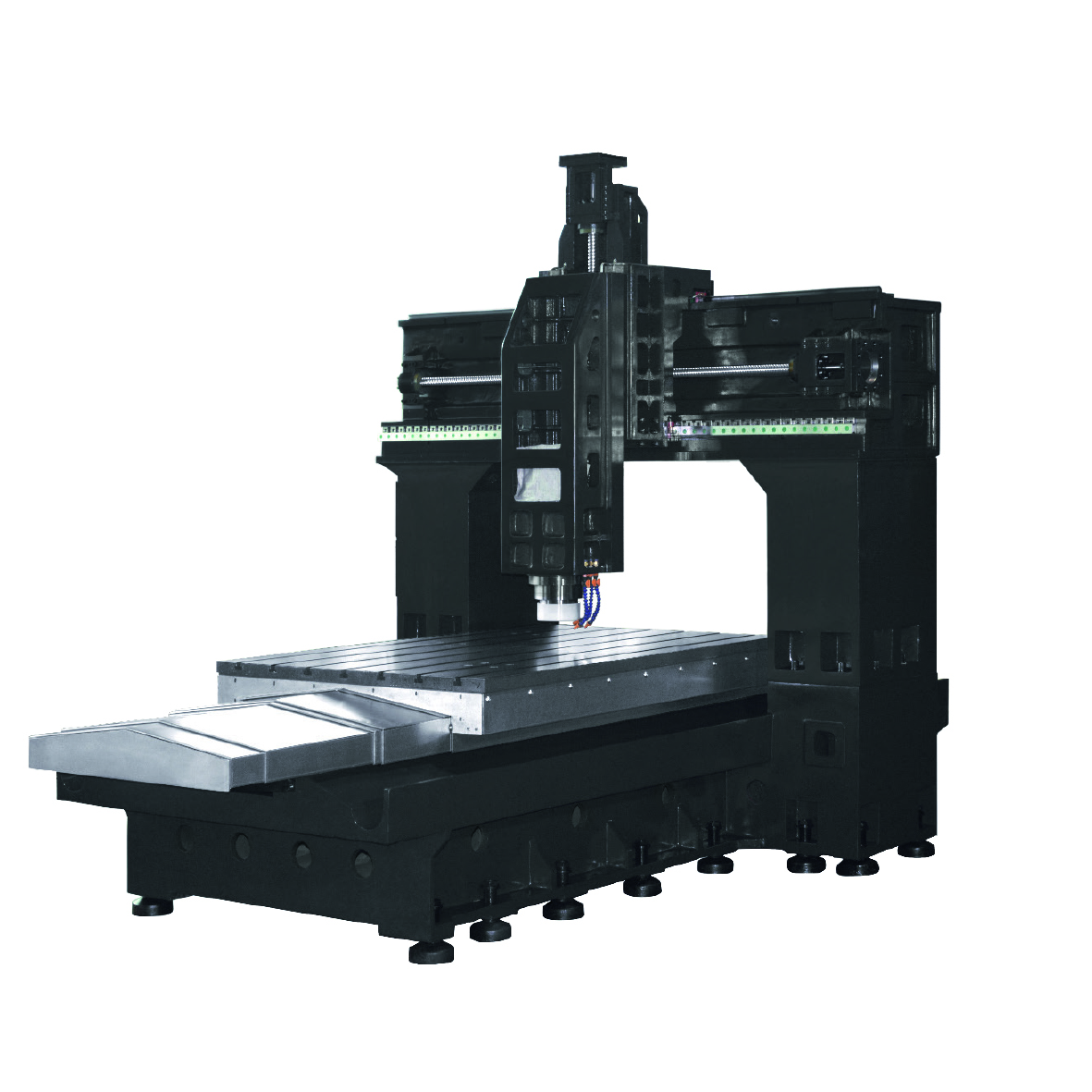

CHESTER V1613HS HIGH SPEED DOUBLE COLUMN CENTRE

This series has extra wide columns to avoid vibration during milling for high speed processing. These highly powered machines are equipped with roller type linear guideways, which offers super high rigidity and loading capacity up to 10 tons.

Please contact us for more info.

Description

• Cast iron is tempered for stress relief to ensure structural stability without deformation

• C3 class ballscrews ensures the highest accuracy and durability

• Pre-tension on all axes minimizes thermal distortion

• Roller type linear guideway, which offers super high rigidity and loading capacity

Technical Specifications                                  V1613HS
Table
Table size 1700 x 1200mm
T-slot (width x number x distance) 18 x 7 x 150mm
Max. load 3000kgs
Travel
X/Y/Z Travel 1600 / 1300 / 600mm
Spindle nose to table 200 – 800mm
Distance between columns 1380mm
Spindle
Spindle taper SK40 / BT40 / CAT40
Spindle servo motor 9/22 kW Siemens; 11/18.5 kW Fanuc
Spindle speed 12,000 min-1
Spindle transmission direct drive
Feed
Rapid speed X/Y/Z 20 mm/min
Cutting speed 1-12.000 mm/min
Tool changer
Number of tools 32 pcs (option)
Max. tool length 300mm
Max. tool diameter 78 (125)mm
Max. tool weight 8kgs
Accuracy
Positioning accuracy (without linear encoder)

Positioning repeatability (without linear encoder)

Positioning accuracy (with linear encoder)

Positioning repeatability (with linear encoder)

0.012mm / Full Travel

0.010mm / Full Travel

0.010mm / Full Travel

0.008mm / Full Travel

Dimensions & weight
Dimensions 5881x4110x3650mm
Weight 16000kgs



STANDARD ACCESSORIES

• Fully enclosed splash guard

• Air-conditioned electrical cabinet

• Rigid tapping

• Chain type chip conveyor

• Ethernet, CF card and USB interface

• Automatic lubrication system

• Coolant system

• Spindle cooling system

• LED working lamp

• End of program light

• Electronic handwheel (MPG)

• Tool box

• Leveling bolts and blots

• Coolant gun

• Air gun

• User Manual



OPTIONAL ACCESSORIES

Direct drive spindle 15000 rpm

• Motor spindle 20000 rpm, HSK A63

• 32 pockets arm tool changer

• Chip conveyor (two screw type and one chain type)

• CTS coolant through spindle +ATS

• Linear scales

• Oil skimmer
