CHESTER V2013 DOUBLE COLUMN MACHINING CENTRE

The Chester V2013 for production and processing of workpieces with complex profiles, designed to process large and thick workpieces.

Please contact us for more info.

Description

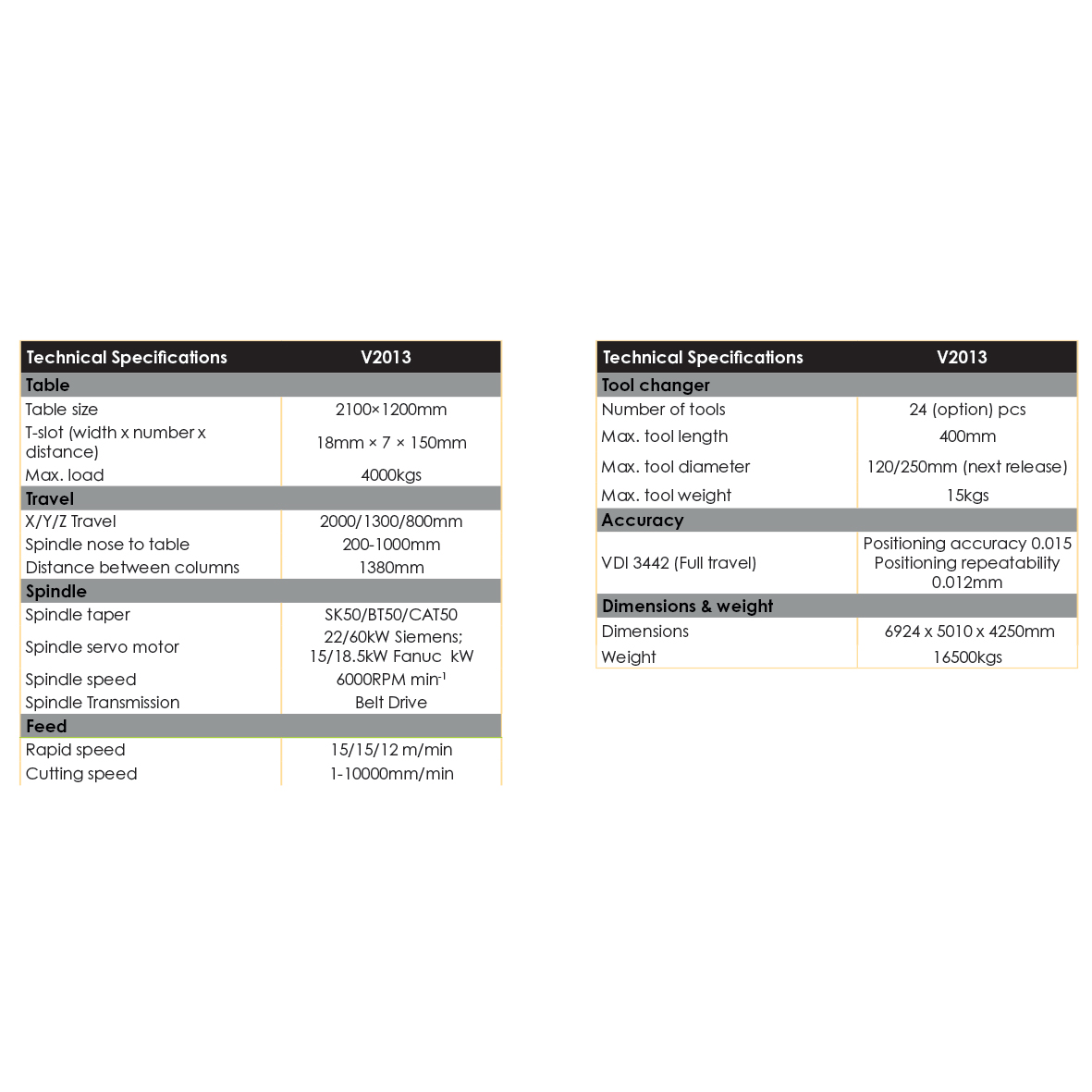

Technical Specifications                             V2013
Table
Table size 2100×1200mm
T-slot (width x number x distance) 18mm × 7 × 150mm
Max. load 4000kgs
Travel
X/Y/Z Travel 2000/1300/800mm
Spindle nose to table 200-1000mm
Distance between columns 1380mm
Spindle
Spindle taper SK50/BT50/CAT50
Spindle servo motor  22/60kW Siemens; 15/18.5kW Fanuc  kW
Spindle speed 6000RPM min-1
Spindle Transmission Belt Drive
Feed
Rapid speed 15/15/12 m/min
Cutting speed 1-10000mm/min
Tool changer
Number of tools 24 (option) pcs
Max. tool length 400mm
Max. tool diameter 120/250mm (next release)
Max. tool weight 15kgs
Accuracy
VDI 3442 (Full travel) Positioning accuracy 0.015

Positioning repeatability 0.012mm

Dimensions & weight
Dimensions  6924 x 5010 x 4250mm
Weight 16500kgs



STANDARD ACCESSORIES

• Fully enclosed splash guard

• Air-conditioned electrical cabinet

• Rigid tapping

• Ethernet ,CF card and USB interface

• Automatic lubrication system

• Coolant system

• Spindle cooling system

• LED working lamp

• End of program light

• Electronic handwheel(MPG)

• Tool box

• Leveling bolts and blots

• Coolant gun

• Air gun

• User Manuals



OPTIONAL ACCESSORIES

• Gear box

• 24 pockets arm tool changer

• 40 pockets chain tool changer

• Chip conveyor (two screw type and one chain type)
