Description

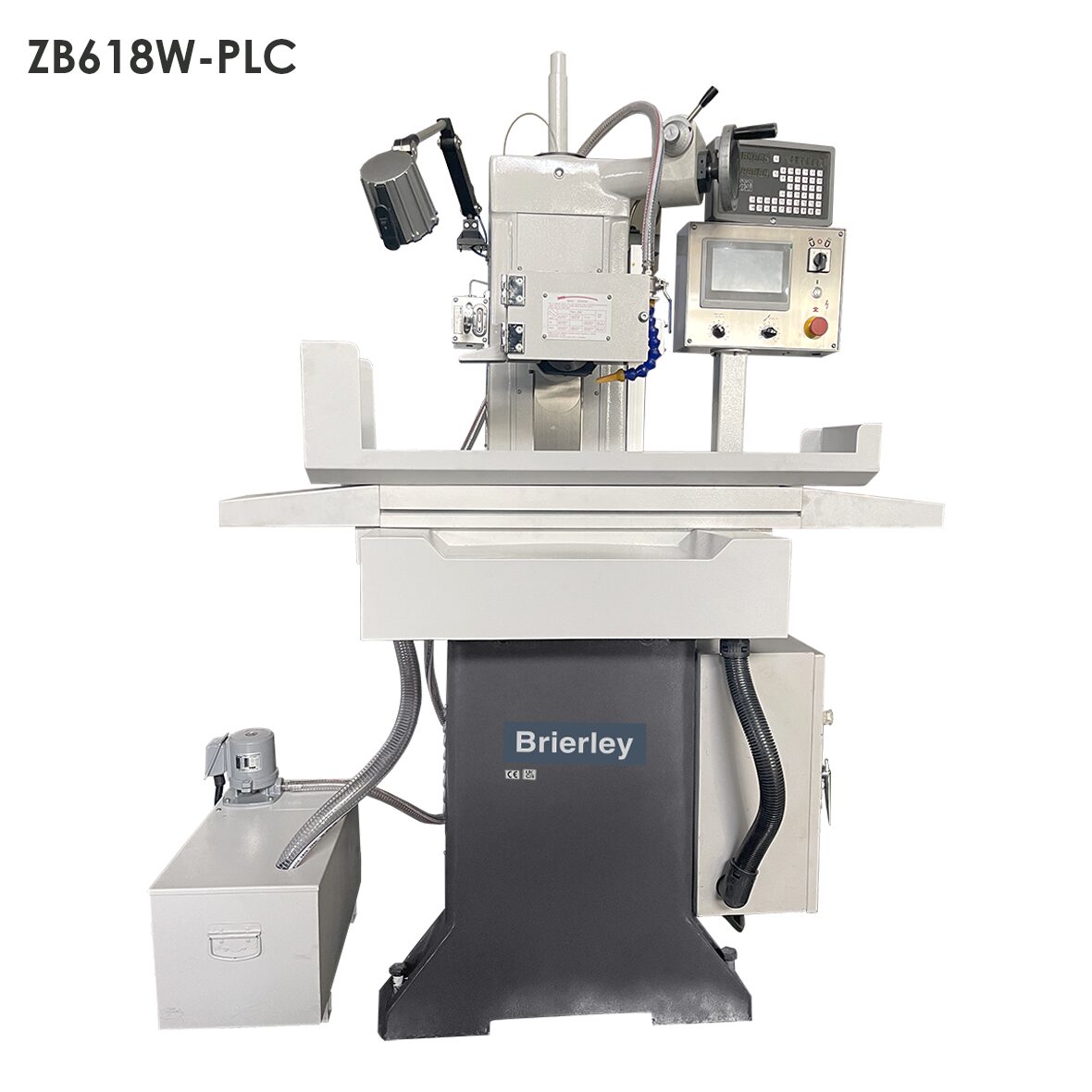

Precision grinding machines with power feed and parallel overhead wheel dresser, ideal for workshops.
• X Axis Timing Belt Drive
• Micro Downfeed (ZB618W-PLC only)
| Model | ZB618WM | ZB618W | ZB618W-PLC |
| Working Surface of Table | 150 × 450mm | 150 × 450mm | 150 × 450mm |
| Max. Table Travel | 480mm | 480mm | 480mm |
| Max. Cross Travel | 178mm | 178mm | 178mm |
| Distance Between Table Surface and Spindle Center | 360mm | 360mm | 360mm |
| Max. Table Load | 100kg | 100kg | 100kg |
| T-Slot (Number × Width) | 1 x 14mm | 1 x 14mm | 1 x 14mm |
| Table Speed | Manual | 0-25 m/min | 0-25 m/min |
| Crossfeed Handwheel | |||
| 1 Grad | 0.01mm | 0.01mm | 0.01mm |
| 1 Rev | 2.5mm | 2.5mm | 2.5mm |
| Automatic Crossfeed of Saddle | – | 0.02-12mm | 0.02-12mm |
| Power Cross Feed 50Hz | – | 780mm | 780mm |
| Grinding Wheel Dimensions | 180×13×32/31.75mm | 180×13×32/31.75mm | 180×13×32/31.75mm |
| Spindle Speed | |||
| 50Hz | 2850rpm | 2850rpm | 2850rpm |
| 60Hz | 3420rpm | 3420rpm | 3420rpm |
| Vertical Handwheel | |||
| 1 Grad | 0.005mm | 0.005mm | 0.005mm |
| 1 Rev | 1.25mm | 1.25mm | 1.25mm |
| Spindle Motor | 1.1kw | 1.1kw | 1.1kw |
| Dust Collection Motor | 550w | 550w | 550w |
| Coolant Motor | 90w | 90w | 90w |
| Crossfeed Motor | – | DC 40w | 400w servo |
| Longitudinal Motor | – | DC 40w | 400w servo |
| Floor Space | 1900 × 1300mm | 1900 × 1300mm | 1900 × 1300mm |
| Machine Dimensions | 1900 x 1300 x 1930mm | 1900 x 1300 x 1930mm | 1900 x 1300 x 1930mm |
| Net Weight | 620kg | 620kg | 650kg |
Standard Accessories
• 2 Axis DRO 1 micron
• Fine Pole Electromagnetic Chuck
• Parallel Overhead Wheel Dresser
• Lamp (ZB68WM)
• LED Light (ZB618W & ZB618W-PLC)
• Grinding Wheel Cover
• Levelling Wedge
• Balancing Stand and Arbor
• Magnetic Separator
• X/Y Electric Power Feed (ZB618W)
• Servo X/Y Feed (ZB618W-PLC)
• Splash Guard
• Tool Box
• Operation Manual
Optional Accessories
• Paper Filter System with Magnetic Separator
• Dust Suction System
• Radius Dresser
• Sine vice
• Precision toolmaker vice
