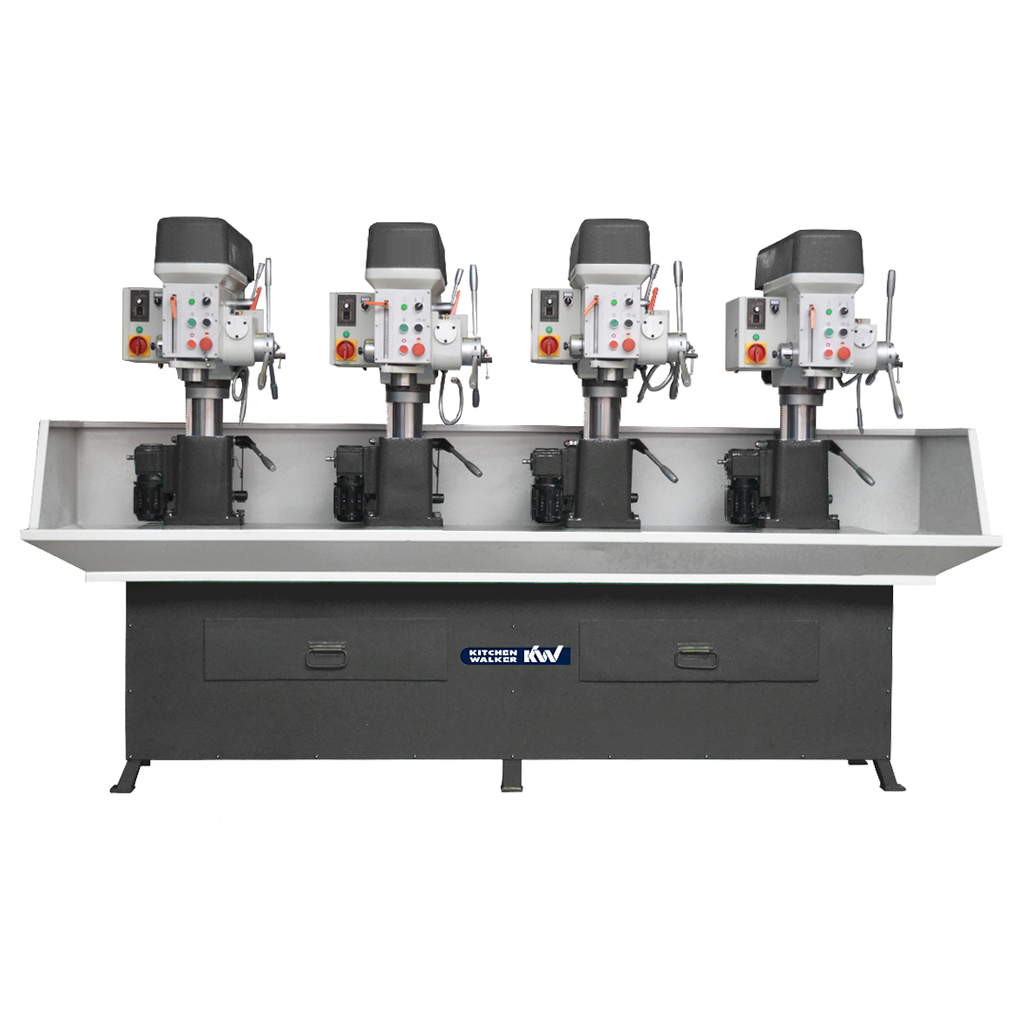

KITCHEN & WALKER GP32-G GANG TYPE DRILLING MACHINE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Drilling Capacity: 31.5mm
Drilling Machines
A high precision drilling machine that’s ideal for machining.
| Drilling Capacity Mild Steel | 31.5mm |
| Drilling Capacity Cast Iron | 31.5mm |
| Tapping Capacity Mild Steel | M20 |
| Tapping Capacity Cast Iron | M24 |
| Spindle Taper | MT3 |
| Distance from Spindle to Column | 265mm |
| Distance from Spindle to Table(min/max) | 325-520mm |
| Swivel of Drilling Head | 360° |
| Vertical Travel of Drilling Head | 195mm |
| Table Size | 2350x600mm |
| Number and size of T slots on Table | 3/24x19x14mm |
| Distance between T Slots | 80mm |
| Maximum Spindle Traverse(hand/power) | 150mm |
| Number of Spindle Speeds | 5 |
| Range of Spindle Speeds | 285-1875r/min |
| Number of Feed Rates | Variable |
| Base Working Surface | 2350x450mm |
| Column Diameter | 100mm |
| Main Motor Power | 6kw(8hp) |
| Overall Height | 1850mm |
| Footprint(LxW) | 2908x1085mm |
| Net Weight | 1650kg |
Standard Accessories
• Drill Chuck
• Taper Sleeve
• Arbor
• Drift
• Wrench
Optional Accessories
• Vice
• Clamp Kit
