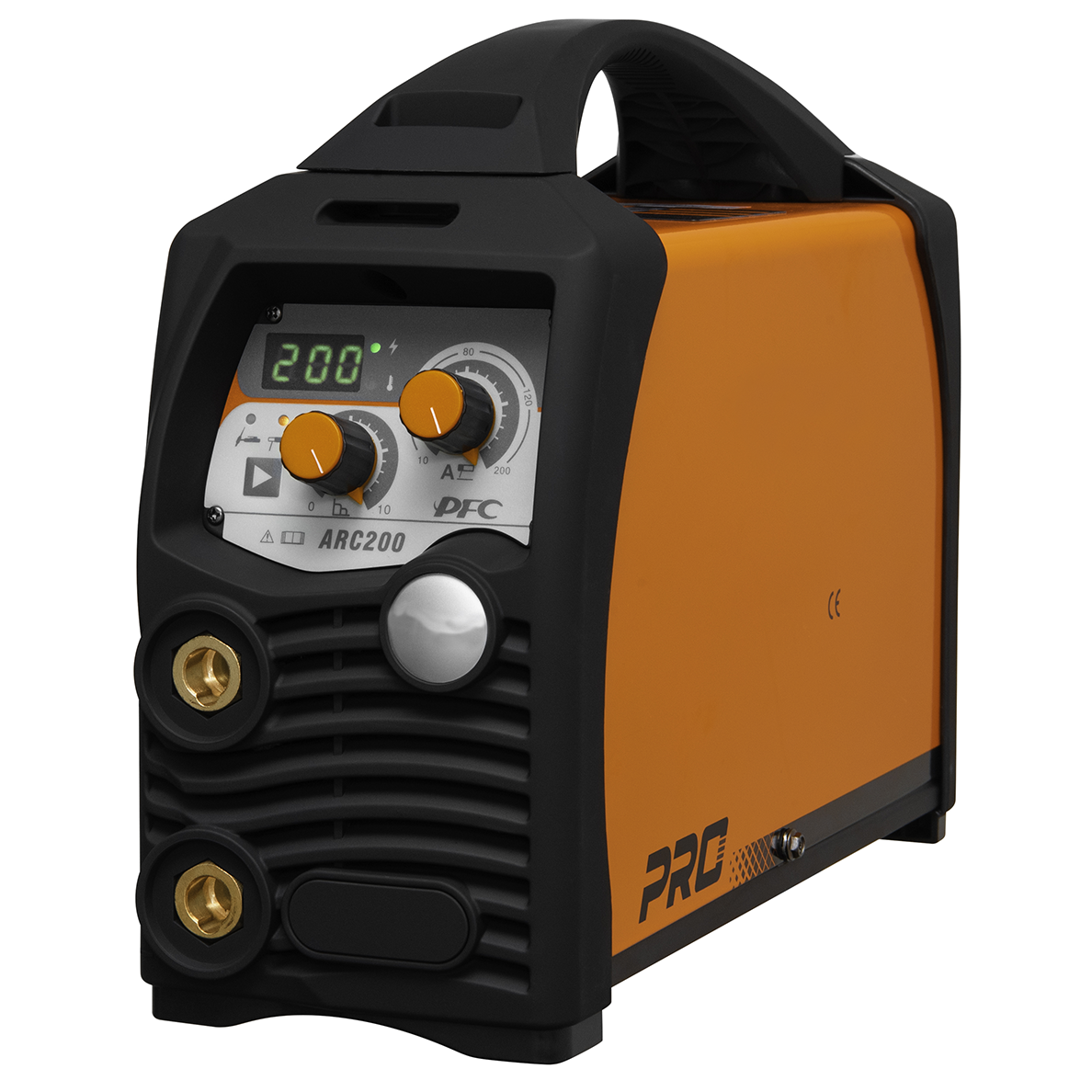

200 PFC Inverter Welder

Description

Wide voltage interver welder with IGBT technology and singular PCB for improved efficiency and maintenance in your workshop.

Input Voltage	95-265V – AC 50/60Hz
	115V	230V
Leff (A)	12.7	13.4
Input Power (kVA)	3.5	7.2
Current Range (A)	10 – 110	10 – 200
Duty Cycle @ 40°C MMA	110A @ 25%	200A @ 25%
Duty Cycle @ 40°C TIG	110A @ 35%	200A @ 40%
No-Load Voltage (V)	68	68
Efficiency (%)	85	85
Power Factor	0.998	0.998
Protection/Insulation Class	IP21S/F	IP21S/F
Dimensions (LxWxH mm)	365 x 135 x 280	365 x 135 x 280
Weight (Kg)	6.4	6.4
Product code	JA-200PFC	JA-200PFC

Features

• IGBT inverter technology
• Wide input voltage 95-265V
• Anti-stick, Arc-force, Hot start, Lift TIG
• 33Khz inverter frequency, high-efficiency
• Compact size, lightweight and modern design
• Heavy duty 35-50mm dinse sockets
• Easy arc starting, minimal spatter
• Auto-compensation for voltage fluctuation
• High quality tactile rubber finish to mouldings and handle Supplied in full colour packaging
• Can weld electrodes of up to 4mm
• Digital setting meter
• Generator friendly*

Package Includes:
Inverter power source, Cable plugs, Operating instructions, 5 year warranty**

*Generators should have regulated output
**5 year warranty subject to product registration
