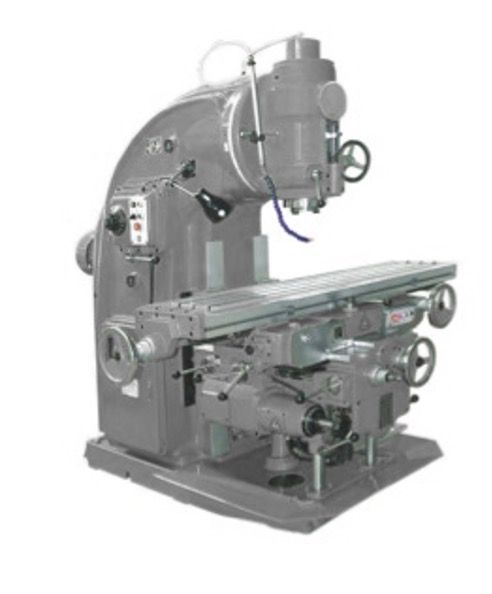

CVM4017 Vertical Milling Machine | Chester Machine Tools

Description

Model	CVM4017
Table size	400 x 1700mm
T-Slots (Number / Width / Pitch)	3 / 18/ 90
Longitudinal Travel (Manual/Automatic)	900/880mm
Cross Travel (Manual/Automatic)	315/300mm
Vertical Travel (Manual/Automatic)	385/365mm
Rapid Feed Speed	2300/1540/770mm/min
Maximum Load	800kg
Spindle Taper	7:24 ISO50
Spindle Speed Range	30~1500r/min
Spindle Speed Steps	18 steps
Spindle Travel	85mm
Maximum Swivel Angle of Vertical Milling Head	±45°
Distance between Spindle Nose and Table Surface	115/500mm
Main Motor Power	11kW
Overall Dimensions (L x W x H)	2556 x 2159 x 2258mm
Net Weight	4250kg

Standard Accessories

• Table Guard

• 3 Axis DRO

• LED Work Lamp

• Drawbar (1 set)

• Ø40 ISO50 Cutter Arbor (1 piece)

• 7:24 The middle set of ISO50 / MS4 (1 piece)

• Oil Gun (1 piece)

• Inner Hexagon Spanner (6mm) (1 piece)

• Double-Ended Wrench 17 x 9 (1 piece)

• Double-Ended Wrench 22 x 24 (1 piece)

• Double-Ended Wrench 27 x 30 (1 piece)

• Double-Ended Wrench 32 x 36 (1 piece)

• Single-Head Spanner 14 (1 piece)

• Single-Head Spanner 50 (1 piece)

• Inner Hexagon Wrench 5mm (1 piece)

• Inner Hexagon Wrench 8mm (1 piece)

• Inner Hexagon Wrench 10mm (1 piece)

Optional Accessories

• Clamping Kit 58pcs

• ISO50 Milling Chuck 15pcs

• Pneumatic Tool Clamping
