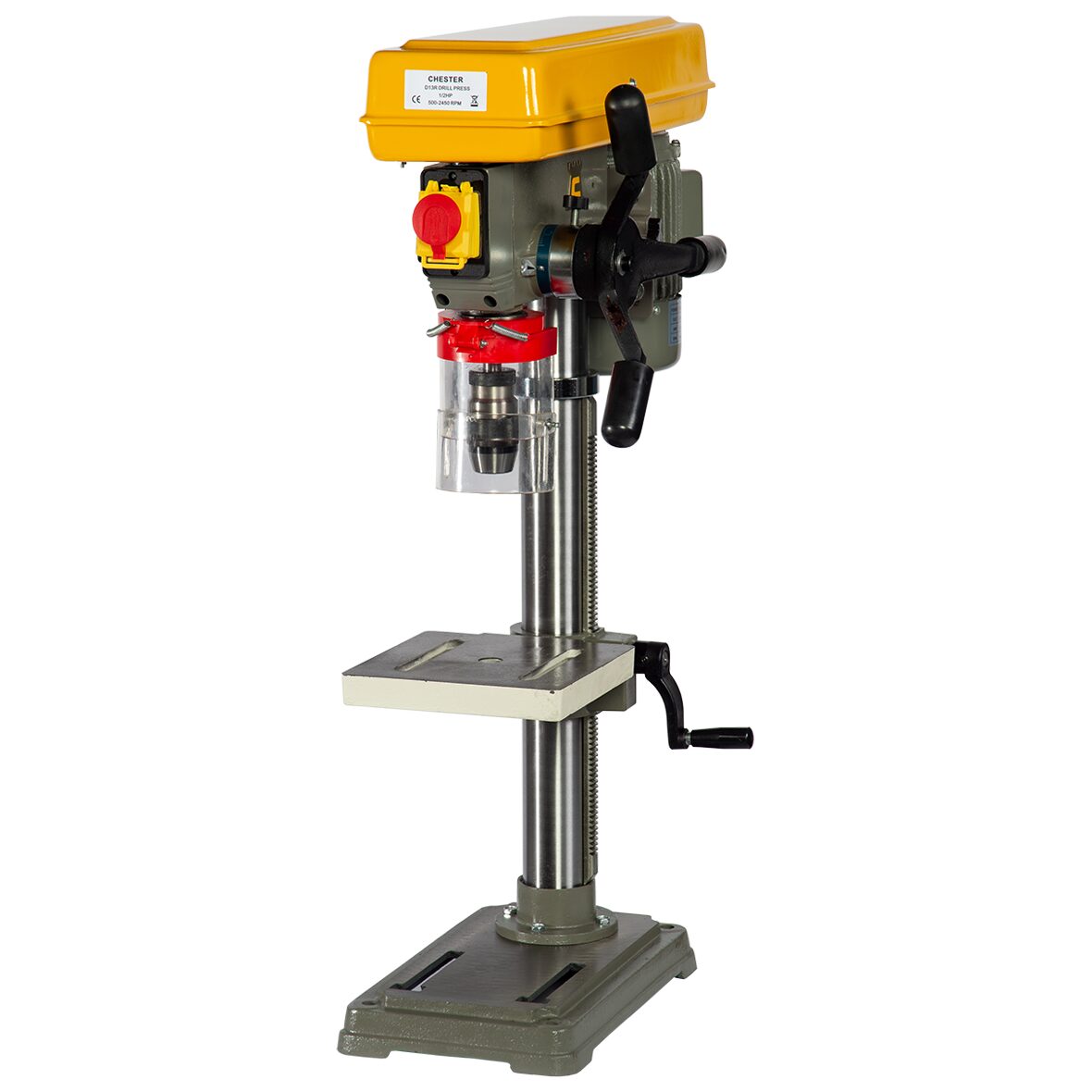

D13R Series Bench Drill| Chester Machine Tools

Description

Quality bench and pillar drills, ideal for a range of applications.

Drill	D13R
Drilling Capacity (Mild Steel)	13mm
Drilling Capacity (Cast Iron)	13mm
Tapping Capacity (Mild Steel)	MT2
Tapping Capacity (Cast Iron)	MT2
Spindle Taper	MT2
Distance from Spindle to Column	127mm
Distance from Spindle to Table(min/max)	80-420mm
Distance from Spindle to Base(min/max)	540mm
Rotation of Table along with column	360°
Tilting Angle of Table	45°-45°
Vertical Travel of Table	340mm
Table Size	198 x 192mm
Number and size of T slots on Table	2/15 x 117mm
Distance between T Slots	112mm
Maximum Spindle Traverse(hand/power)	60mm
Number of Spindle Speeds	5
Range of Spindle Speeds	460-2890rpm
Number of Feed Rates	1
Power Feed Rates	50hz
Base Size Overall	345 x 215mm
Base Working Surface	160 x 180mm
Number and Size of T Slots on Base	2/15 x 103mm
Distance between T Slots	114mm
Column Diameter	60mm
Main Motor Power	0.37kW(0.5hp)
Overall Height	840mm
Net Weight	37kg
Machine Dimensions	345 x 215 x 840mm
