CHESTER DC-1200-HS HIGH PERFORMANCE DOUBLE COLUMN MACHINING CENTRE

The CHESTER DC-1200-HS High Speed Double Column CNC Machining Centre is designed for the Die and Mould industry and to machine complex components.

Please contact us for more info.

Description

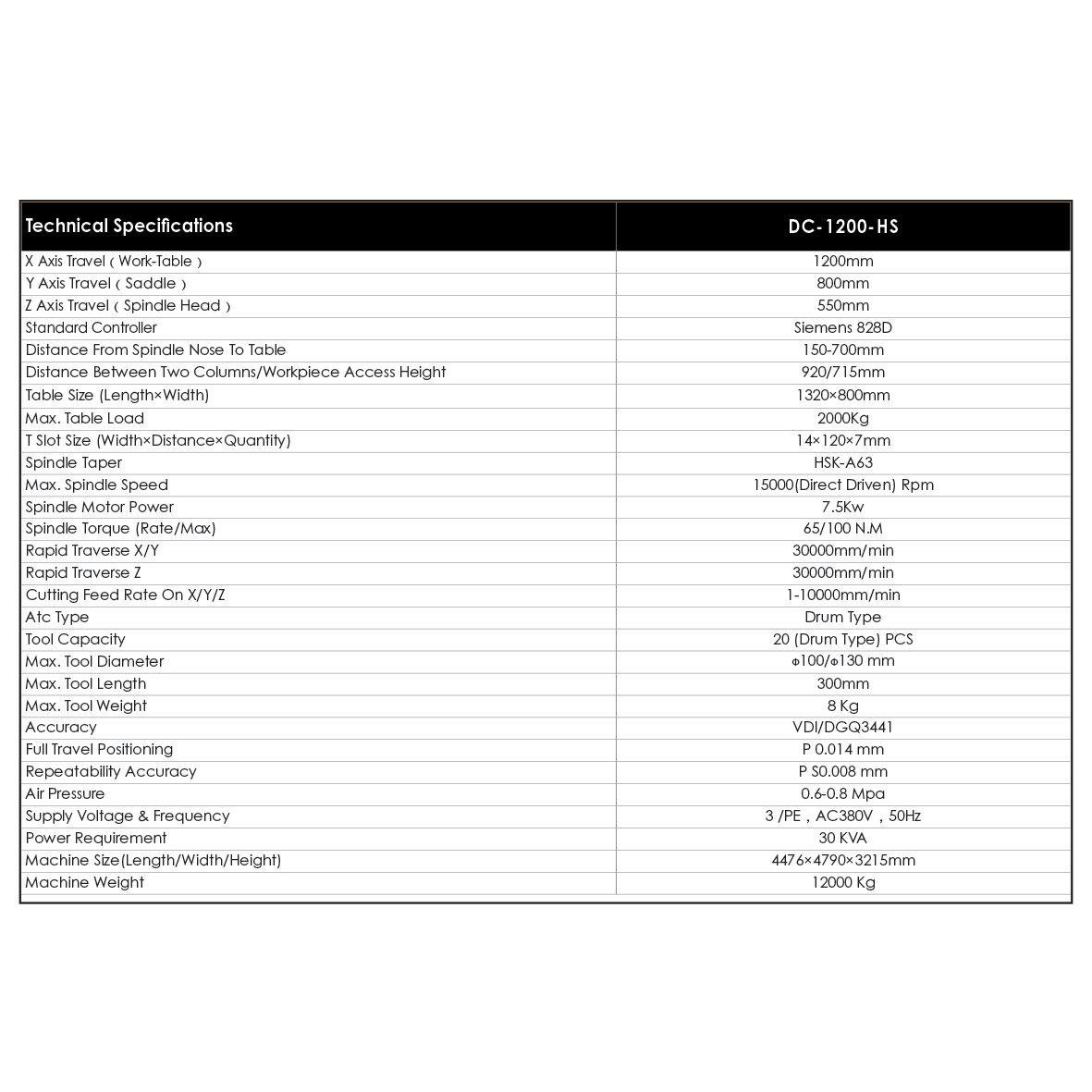

Technical Specifications DC-1200-HS
X Axis Travel(Work-Table) 1200mm
Y Axis Travel(Saddle) 800mm
Z Axis Travel(Spindle Head) 550mm
Standard Controller  Siemens 828D
Distance From Spindle Nose To Table 150-700mm
Distance Between Two Columns/Workpiece Access Height  920/715mm
Table Size (Length×Width)  1320×800mm
Max. Table Load  2000Kg
T Slot Size (Width×Distance×Quantity) 14×120×7mm
Spindle Taper HSK-A63
Max. Spindle Speed 15000(Direct Driven) Rpm
Spindle Motor Power 7.5Kw
Spindle Torque (Rate/Max)  65/100 N.M
Rapid Traverse X/Y 30000mm/min
Rapid Traverse Z  30000mm/min
Cutting Feed Rate On X/Y/Z 1-10000mm/min
Atc Type Drum Type
Tool Capacity  20 (Drum Type) PCS
Max. Tool Diameter Φ100/Φ130 mm
Max. Tool Length  300mm
Max. Tool Weight 8 Kg
Accuracy VDI/DGQ3441
Full Travel Positioning   P 0.014 mm
Repeatability Accuracy P S0.008 mm
Air Pressure 0.6-0.8 Mpa
Supply Voltage & Frequency 3 /PE,AC380V,50Hz
Power Requirement  30 KVA
Machine Size(Length/Width/Height)  4476×4790×3215mm
Machine Weight  12000 Kg



STANDARD ACCESSORIES

• Low And High Power Separated Electric Cabinet

• Rigid Tapping

• Full Enclosure Guard

• Air Sealing

• Machining Air Blowing Device

• Working Area Light

• 3 Color Indication Light

• Spindle Surrounding Coolant

• Portable Mpg

• Coolant System

• Automatic Lubrication System

• Pneumatic Unit

• Air Condition For Electric Cabinet

• Air Gun Flushing Function

• Oil Skimmer

• Water Gun Flushing Function

• Spindle Chiller

• Tool Kit

• Automatic Power Off

• Adjustable Level Bolts And Foundation Blocks

• Operation Manual

• Safety Door Interlock

• Swivel Type Operation Box

• Customized Operation Panel

• Siemens 828D,15Lcd,Shop Mill ,Top Surface,Safety Integrated.

• Grease Lubrication System

• Coil Chip Conveyor In Two Side+Chain Type (With Bucket)

• Coolant Through Spindle Center 20 Bars And Air Through Spindle Center

• Strict Ce According To Germany Tuv Sud Standard Drum Type Atc (20 Pcs)

• Smart Spindle Temperature Compensation
