Description

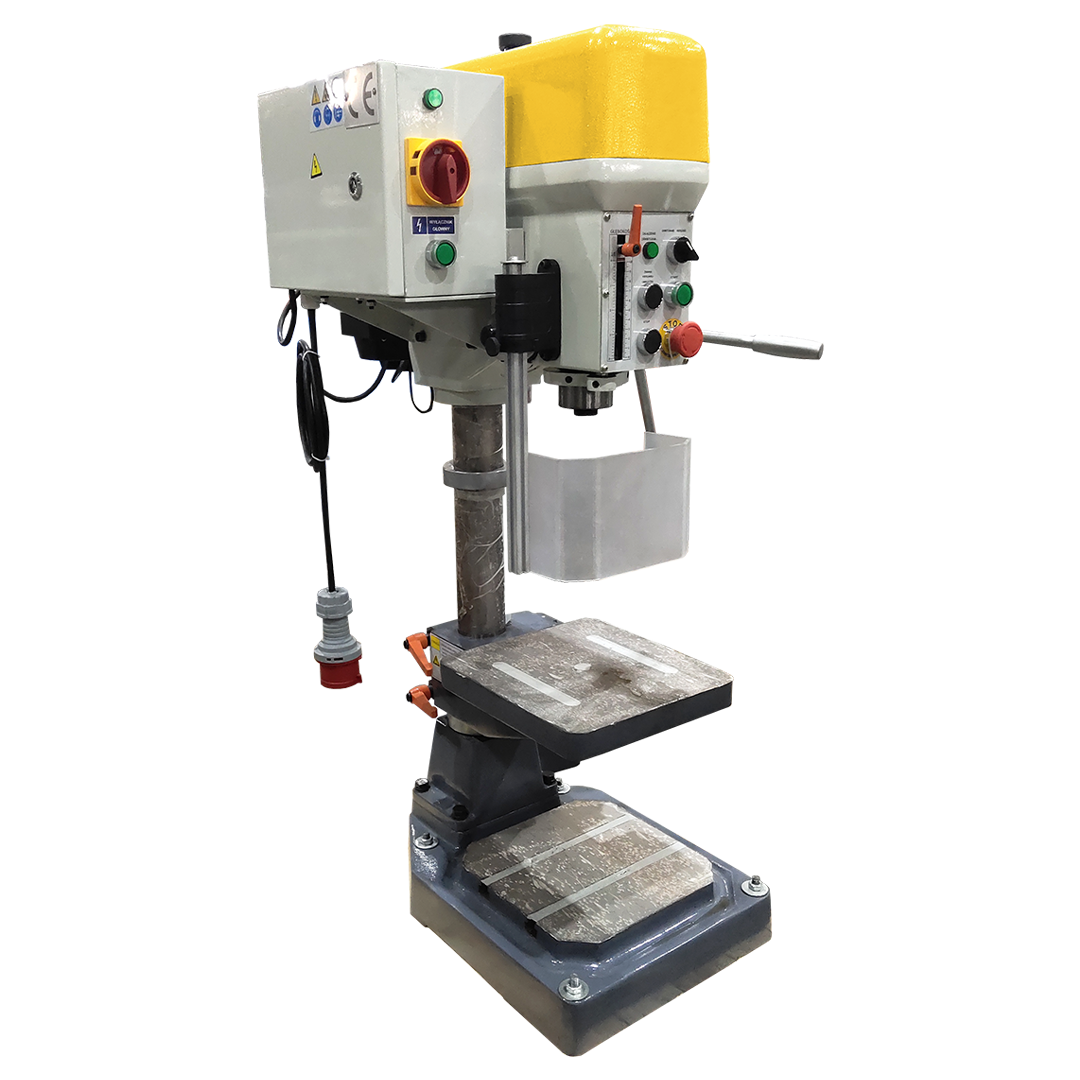

Our Pro series drills are ideal for machining. Complete with drill chuck and arbor.
Features:
- Power Feed
| Model | PRO22 |
| Capacity | |
| Drilling Capacity (Mild Steel) | 20mm |
| Drilling Capacity (Cast Iron) | 20mm |
| Tapping Capacity (Mild Steel) | M16 |
| Tapping Capacity (Cast Iron) | M20 |
| Spindle Taper | MT2 |
| Distance from Spindle to Column | 240mm |
| Distance from Spindle to Table (min/max) | 0-366mm |
| Distance from Spindle to Base (min/max) | 593-678mm |
| Table | |
| Vertical Travel of Table | 200mm |
| Table Size | 300x320mm |
| Number and size of T slots on Table | 4-14mm |
| Feeds and Spindle | |
| Maximum Spindle Travel | 85mm |
| Number of Spindle Speeds | 5 |
| Range of Spindle Speeds | 320-1820rpm |
| Power Feed Rate | – |
| Base/Column | |
| Base Size Overall | 325x450mm |
| Base Working Surface | 305x366mm |
| Number and Size of T Slots on Base | 14x2x160mm |
| Distance between T Slots | 160mm |
| Column Diameter | 85mm |
| Motors | |
| Main Motor Power | 1.1kw(1.5hp) |
| Coolant Pump Motor | – |
| Weight and Dimensions | |
| Net Weight | 183kg |
| Machine Dimensions | 990x590x1400mm |
Standard Accessories
• Drill chuck
• Arbor
• Taper sleeve
• Drift
• Crank
Optional Accessories
• Vice
• Tapping Chuck
