CHESTER V10L DELTA CNC MACHINING CENTRE

Suitable for metal parts machining and mass production.

Please contact us for more info.

Description

Cast Iron is Tempered for Stress Relief to Ensure Structural Stability without Deformation. C3 Class Ballscrews Ensure the Highest Accuracy and Durability. Pretension on All Axis Minimizes Thermal Distortion.

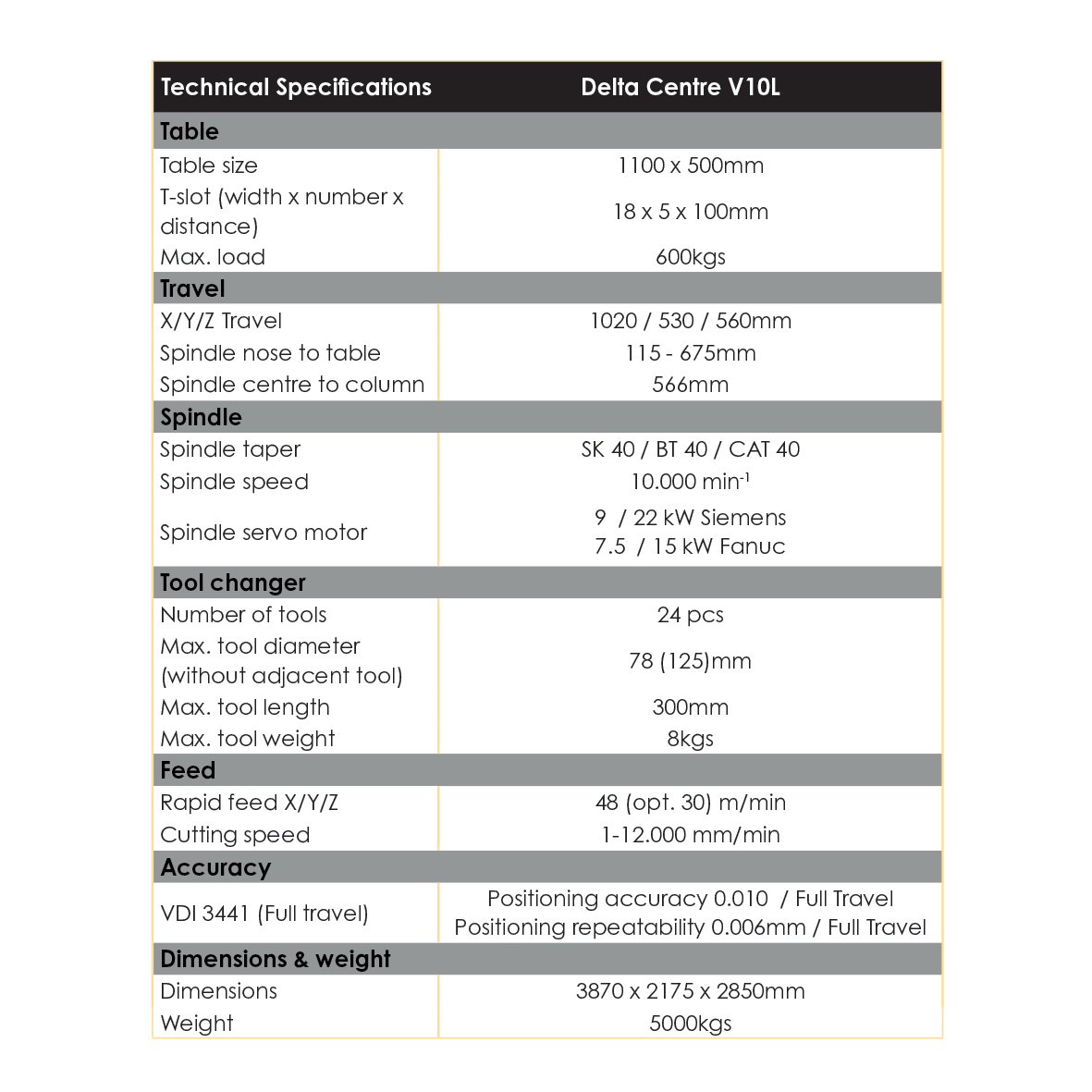

Table
Table Size 1100×500mm
T Slot(Width×Numer×Distance) 18×5×100mm
Max.Load 600kg
Travel
X/Y/Z Travel 1020/520/550mm
Spindle Nose to Table  120-670mm
Spindle Centre to Column 566mm
Spindle
Spindle Type and Diameter BT40
Spindle Servo Motor Siemens 9/22kw(12.24/29.92hp)
Spindle Servo Motor Fanuc 7.5/11kw(10.2/14.96hp)
Spindle Speed 10000rpm
Feed
Rapid Feed X/Y/Z 30m/min(Opt.48m/min)
Cutting Speed 1-12000mm/min
Tool Changer
Tool Number  24
Tool Length 300mm
Max.Tool Diam. (Without Adjacent Tool) 78(125)mm
Max.Tool Weight 8 kg
Accuracy
VDI 3441(Full Travel) Positioning accuracy 0.008 / Positioning repeatability 0.004
Dimension & Weight
Dimension  2570×2200×2850mm
Weight  5000kg

STANDARD ACCESSORIES

• Siemens/Fanuc Controller

• Fully Enclosed Splash Guard

• Belt Drive Spindle 10000rpm

• 24 Pockets Arm Tool Changer

• Air-Condition for Electrical Cabinet

• Rigid Tapping

• Ethernet, CF Card and USB Interface

• Automatic Lubrication System

• Coolant System

• Oil Separation

• Led Working Lamp

• End of Program Light

• Spindle Cooling System

• Tool Box

• Leveling Bolts and Blocks

• Coolant Gun

• Air Gun

• Chip Flushing System

• Operation Manual

OPTIONAL ACCESSORIES

• Spindle Speed 12000rpm Direct Drive

• Coolant Through Spindle

• Chain Type Chip Conveyor

• 4th axis

• Workpiece Probe

• Tool Probe

• 3D Simulation (Siemens)

• Manual Guide Oi/I (Fanuc Type 5/1)

• 4th and 5th Axis

• Heidenhain Controller

• Lehmann Switzerland 4/5 Axis
