CHESTER V6L DELTA CNC MACHINING CENTRE

Providing optimal performance – suitable for metal parts machining and mass production.

• Tool room workshop

• Metal parts machining

• Mould making and R&D

Please contact us for more info.

Description

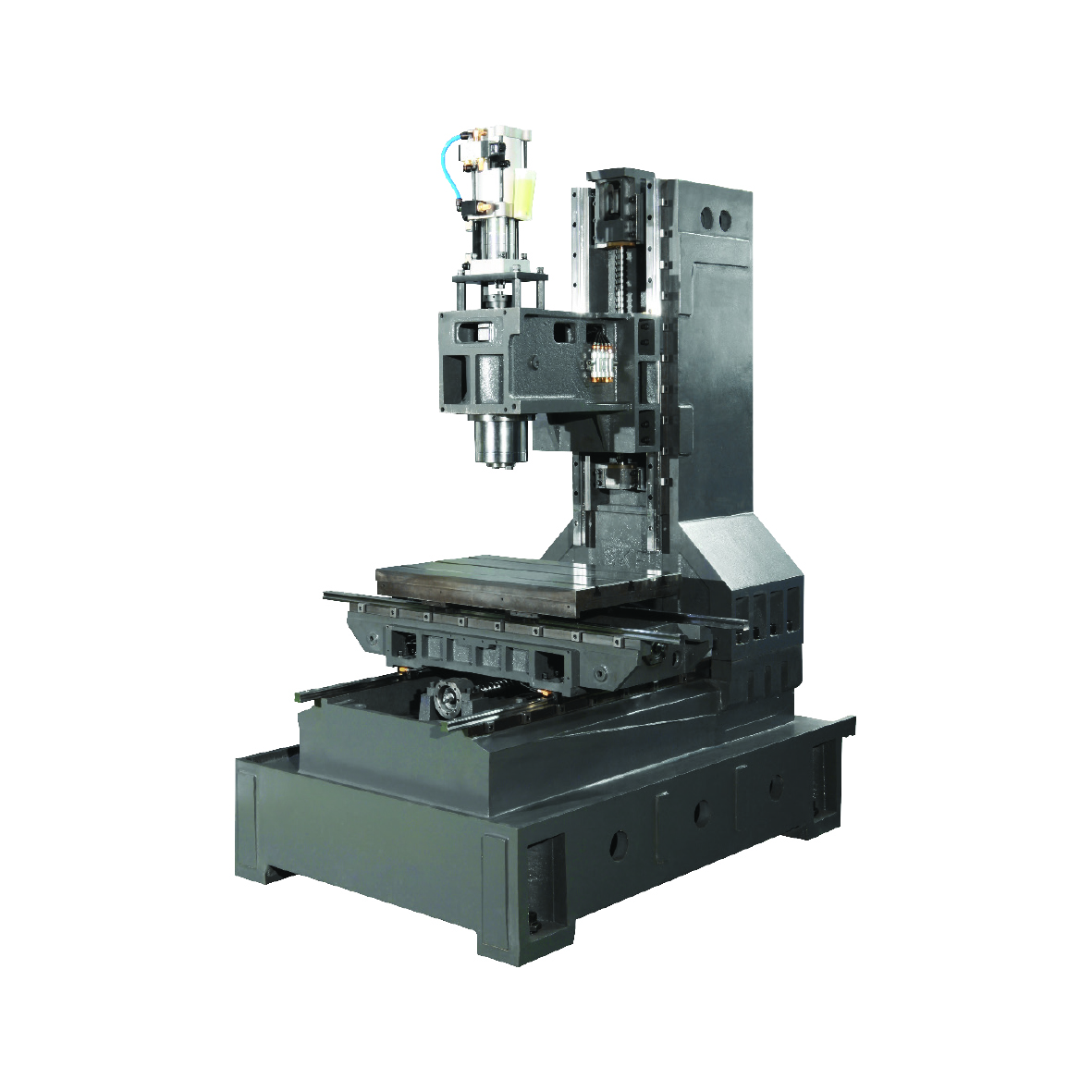

The V6L Delta features:

• Cast iron is tempered for stress relief to ensure structural stability without deformation

• C3 class ballscrews ensures the highest accuracy and durability

• Pre-tension on all axes minimizes thermal distortion

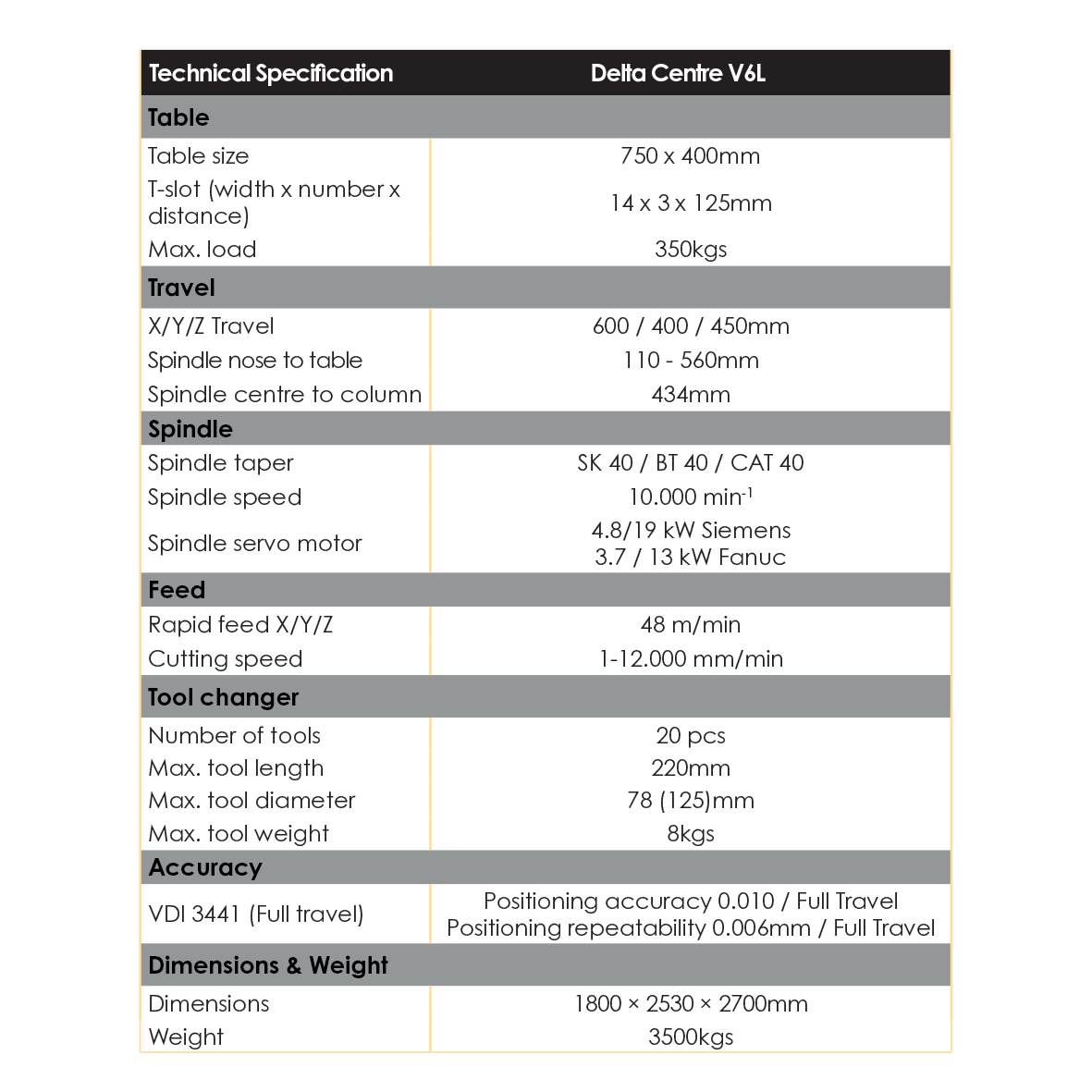

Technical Specification                                      Delta Centre V6L
Table
Table size 750 x 400mm
T-slot (width x number x distance) 14 x 3 x 125mm
Max. load 350kgs
Travel
X/Y/Z Travel 600 / 400 / 450mm
Spindle nose to table 110 – 560mm
Spindle center to column 434mm
Spindle
Spindle taper SK 40 / BT 40 / CAT 40
Spindle speed 10.000 min-1
Spindle servo motor 4.8/19 kW Siemens

3.7 / 13 kW Fanuc

Feed
Rapid feed 48 m/min
Cutting speed 1-12.000 mm/min
Tool changer
Number of tools 20 pcs
Max. tool length 220mm
Max. tool diameter 78 (125)mm
Max. tool weight 8kgs
Accuracy
VDI 3441 (Full travel) Positioning accuracy 0.010 / Full Travel

Positioning repeatability 0.006mm / Full Travel

Dimensions & Weight
Dimensions 1800 × 2530 × 2700mm
Weight 3500kgs



STANDARD ACCESSORIES

• Fully enclosed splash guard

• Belt drive spindle 10000 rpm

• 20 pockets arm tool changer

• Heat exchanger for electrical cabinet

• Rigid tapping

• Ethernet CF card and USB interface

• Automatic lubrication system

• Coolant system

• LED working lamp

• End of program light

• Electronic handwheel (MPG)

• Tool box

• Leveling bolts and blocks

• Coolant gun

• Air gun

• Chip flushing system

• User Manual



OPTIONAL ACCESSORIES

• Spindle speed 12000 rpm, direct drive

 Spindle cooling system

 CTS Coolant through spindle + ATS

 4th axis

• Workpiece probe

 Tool probe

• Oil skimmer



Click the links below to download the specific documents.
Delta-V6L-1.pdf
