CHESTER V7L ALPHA CENTRE CNC MACHINING CENTRE

Characterized by high performance, stable and powerful in all areas. The Chester V7L Alpha Centre is equipped with high-quality linear guide in a roller version.

• Suitable for Mould Making

• High Rigidity

Please contact us for more info.

Description

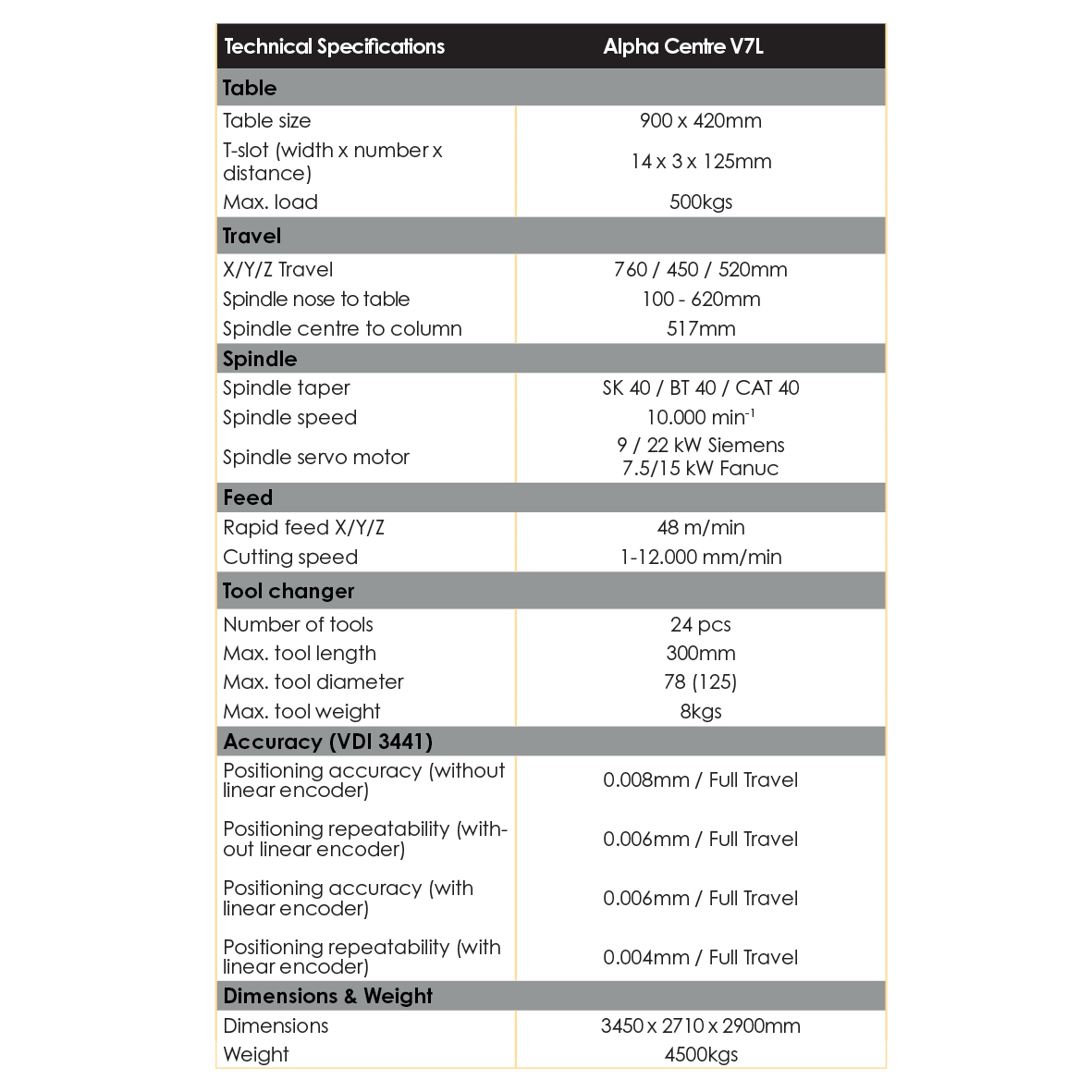

Technical Specifications                                   Alpha Centre V7L
Table
Table size 900 x 420mm
T-slot (width x number x distance) 14 x 3 x 125mm
Max. load 500kgs
Travel
X/Y/Z Travel 760 / 450 / 520mm
Spindle nose to table 100 – 620mm
Spindle centre to column  517mm
Spindle
Spindle taper SK 40 / BT 40 / CAT 40
Spindle speed 10.000 min-1
Spindle servo motor 9 / 22 kW Siemens

7.5/15 kW Fanuc

Feed
Rapid feed 48 m/min
Cutting speed 1-12.000 mm/min
Tool changer
Number of tools 24 pcs
Max. tool length 300mm
Max. tool diameter 78 (125)
Max. tool weight 8kgs
Accuracy (VDI 3441)
Positioning accuracy (without linear encoder)

Positioning repeatability (without linear encoder)

Positioning accuracy (with linear encoder)

Positioning repeatability (with linear encoder)

0.008mm / Full Travel

0.006mm / Full Travel

0.006mm / Full Travel

0.004mm / Full Travel

Dimensions & Weight
Dimensions 3450 x 2710 x 2900mm
Weight 4500kgs



STANDARD ACCESSORIES

• Fully enclosed splash guard

• Belt drive spindle 10.000 min-1

• 24 pockets arm tool changer

• Air-conditioned electrical cabinet

• Rigid tapping

• Ethernet CF card and USB interface

• Automatic lubrication system

• Spindle Cooling System

• CTS-Coolant Through Spindle

• LED working lamp

• End of program light

• Electronic handwheel (MPG)

• Tool box

• Leveling bolts and blocks

• Coolant gun

• Air gun

• Chip flushing system

• User Manuals
